Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: Z41X-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD189.9/Set - USD8899.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Water Pipeline Open And Close |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Normal Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Ductile Iron |
Quality Warranty: |
18 Months |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Name: |
Non Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Water Pipeline Open And Close |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Normal Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Ductile Iron |
Quality Warranty: |
18 Months |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Name: |
Non Rising Stem Gate Valve |

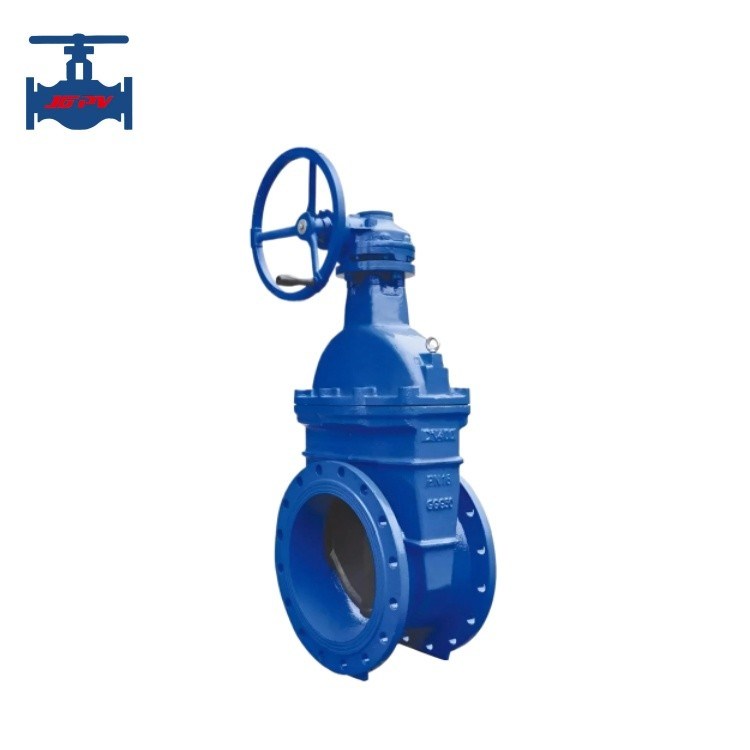

Ductile Iron NRS Resilient Seated Gate Valve For Water Pipeline Use
Product introduction:
Gate valve is a valve like a gate, with the movement direction perpendicular to the direction of the fluid, and gate valve can only be fully open and closed, not adjusted or throttled, It is widely used in petrochemical, pharmaceutical, electric power and other industries
Resilient seat sealed gate valve is a type of soft sealed gate valve, which is an industrial valve of elastic gate valve. Its opening and closing component is the gate, and the direction of the gate's movement is perpendicular to the direction of the fluid. The gate valve can only be fully open and fully closed, and cannot be adjusted or throttled.
Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.
Gate valve can be controlled by various types of actuator to open and close its gate plate, such as pneumatic actuator, electric actuator and bevel gear actuator etc. Under such condition, can be divided into two parts, the upper part is the electric actuator and the lower part is the valve. The action force distance is larger than that of electric/pneumatic valves, and the opening and closing speed of electric gate valves can be adjusted. The structure is simple and easy to maintain. During the action process, due to the buffering characteristics of the gas itself, it is not easy to be damaged due to jamming, but there must be a electric source / gas source, and its control system is also more complex than that normal valves. Pneumatic / Electric / bevel gear operated gate valves have sensitive response, safety and reliability. Many factories with high control requirements have set up compressed air stations specifically for pneumatic instrument control components. Electric devices require electricity and can control their flow rate.
Product technical parameters:
| Diameter nominal DN (mm) | 40～600 | |
| Pressure nominal PN (MPa) | 1.0～2.5 | |
| Test standard (MPa) | Strength test | 1.5 times of pressure nominal |
| Sealing test | 1.1 times of pressure nominal | |
| Main Components | Body | Ductile iron |
| Bonnet | Ductile iron | |
| Stem | 2Cr13 | |
| O type ring | NBR | |
| Seal | NBR | |
| Gland | Ductile iron | |
| Disc | Ductile iron wrapped by NBR | |
| Medium suitable | Water | |
| Working temperature | 0℃～80℃ | |
| Connection type | Flange | |
| Operational method | Manual, bevel gear, pneumatic and electric actuator | |
Product features:
1. Resilient seated gate valve with flat bottomed valve seat, no accumulation of dirt, making the sealing more reliable.
2. Resilient seated gate valve disc is wrapped in nitrile rubber as a whole, and the valve internals are made of corrosion-resistant and rust resistant steel and copper alloy materials, which can be used in sewage systems to adapt to harsh working environments.
3. Resilient seated gate valve with small volume and light weight, making it easy to install and maintain.
4. Resilient seated gate valve stem is sealed with three O-ring seals, greatly reducing friction resistance during opening and closing. The switch is lightweight and leak free.
