Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z41H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD59.5/pc - USD5999/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Rising Stem Gate Valve |

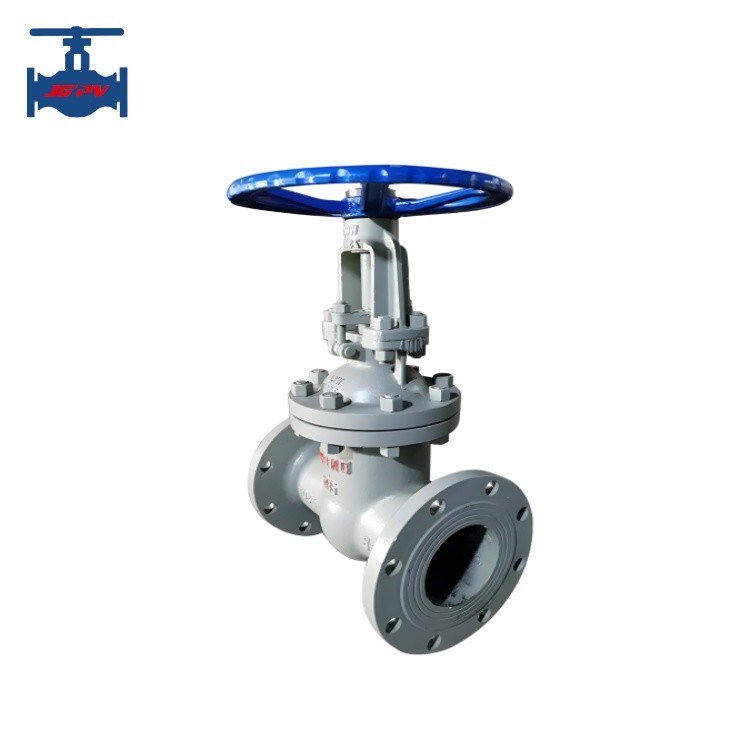

Cast Steel ASTM A216 WCB Bolted Bonnet Outside Screw And Yoke Wedged Gate Valve
Product Introduction:
Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.
Cast steel is mainly used for controlling the flow rate, pressure, and temperature of pipelines in various industrial automation production. For example: electricity, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc
Product Technical Parameters:
| Type Number: | Z41H-JGPV | |
| Nominal Pressure PN(MPa) | 1.0 - 10.0 | |
| Nominal Diameter DN(mm) | 50～600 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | WCB, WCC, WC6, WC9 | |
| Medium suitable: | Water, steam, oil etc. | |
| Working temperature | 425≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Product features:
1. Cast steel gate valve with low flow resistance;
2. Cast steel gate valve with less erosion of the sealing surface by the medium;
3. Cast steel gate valve with compact structure, opening and closing are more effortless.
4. The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure.
5. As medium can flow toward either direction of the two sides, it is easy to be installed;
6. Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance,
