Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z41H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD69.5/pc - USD13999/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Driven Method: |
Manual, Pneumatic And Electric Ways |
Body Material: |
Cast Steel |
Seal Type: |
Hard Seal |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Name: |
Wedged Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Driven Method: |
Manual, Pneumatic And Electric Ways |
Body Material: |
Cast Steel |
Seal Type: |
Hard Seal |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Name: |
Wedged Gate Valve |

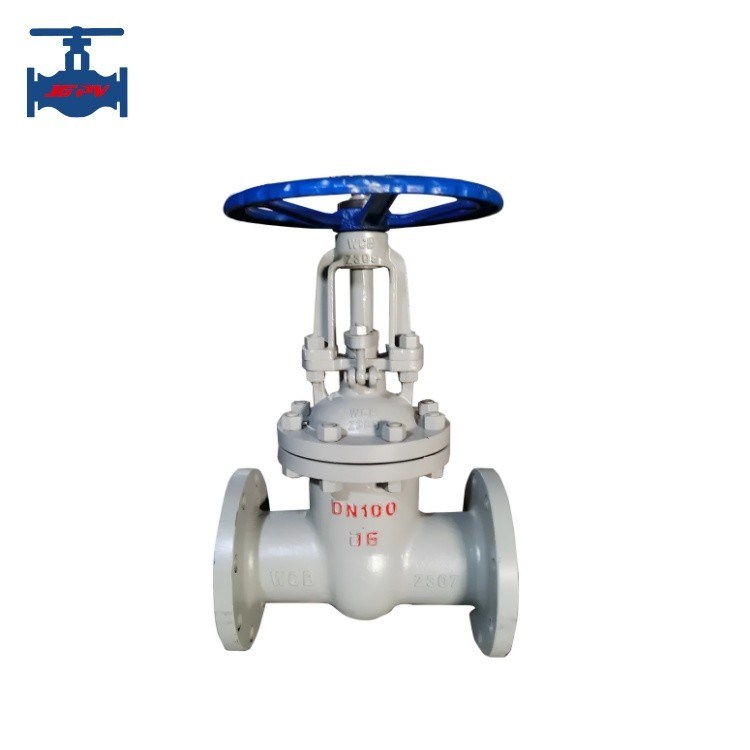

Cast Steel WCB Wedged Gate Valve Flange Connection For Water, Steam And Oil Use
Product Introduction:
Gate Valve is a particular type of valve product that regulates fluid flow in pipeline by opening or shutting a gate or wedge that moves vertically to let or limit fluid flow. Idealistically, it shouldn’t be utilized as a regulating valve or control valve. The gate travels perpendicular to the service flow, hence the name. The most typical and straightforward form of valves are gate valves. It cannot be employed to control flow. Gate valves are frequently opened and closed by spinning a handwheel or utilizing a bevel gear actuator, pneumatic actuator or a motorized actuator to rotate a threaded stem. The fluid can pass through the valve unhindered when the gate is fully lifted. The valve is effectively shut off when the gate is lowered because it obstructs the fluid passage.
Product Technical Parameters:
| Type Number: | Z41H-JGPV | |
| Nominal Pressure PN(MPa) | 1.6 | |
| Nominal Diameter DN(mm) | DN50-DN600 | |
| Test pressure (MPa) | Strength (water) | 2.4 |
| Sealing (water) | 1.76 | |
| Raw material | WCB | |
| Medium suitable: | Water, steam, oil | |
| Working temperature | 425≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Product features and applications:
