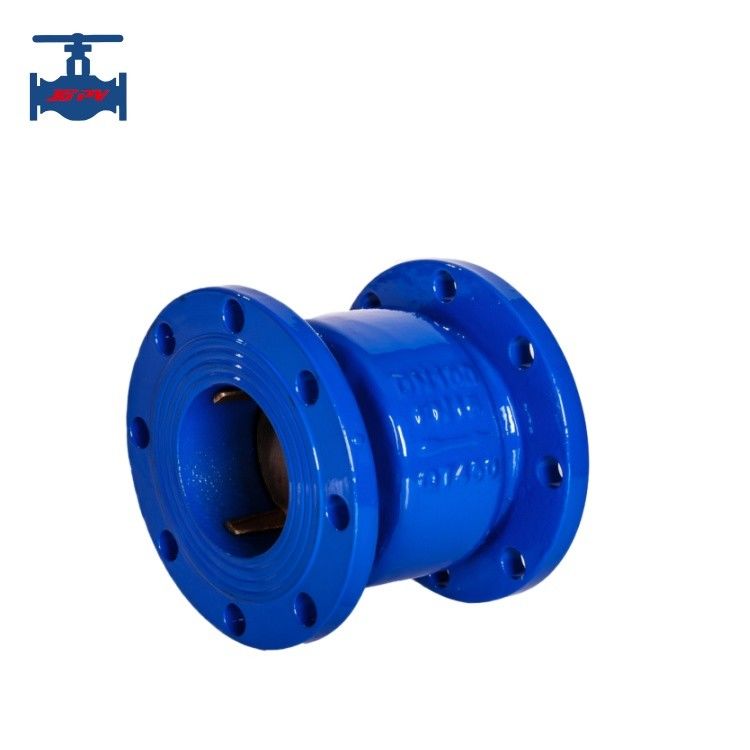

Cast Steel Stainless Steel Flanged Silent Check Valve Ductile Iron

Name: Cast Steel Stainless Steel Flanged Silent Check Valve Ductile Iron
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: HC41X-16Q
Price: 1,464.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: HC41X-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD29.9/Set - 2899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Flanged Silent Check Valve, Silent Check Valve Ductile Iron


Standard Or Non-standard:	Standard	Application:	General
Standard:	GB DIN	Medium Type:	Water And Sewage, Steam, Oil And Corrosive Mediums
Working Temperature:	Normal Temperature And High Temperature	Pressure Application:	Low Pressure And Medium And High Pressure
Manufacturing Craft:	Casting	Body Material:	Ductile Iron, Cast Steel And Stainless Steel
Port Size:	DN15-DN600	Quality Warranty:	18 Months

Standard Or Non-standard:	Standard
Application:	General
Standard:	GB DIN
Medium Type:	Water And Sewage, Steam, Oil And Corrosive Mediums
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Low Pressure And Medium And High Pressure
Manufacturing Craft:	Casting
Body Material:	Ductile Iron, Cast Steel And Stainless Steel
Port Size:	DN15-DN600
Quality Warranty:	18 Months

Cast Steel Stainless Steel Flanged Silent Check Valve Ductile Iron

Ductile Iron Cast Steel Stainless Steel Flanged Silent Check Valve

Product introduction:

The HC41X soundproof check valve disc adopts central axis guidance at both ends of the inlet and outlet, with flexible opening and closing, and can be installed horizontally or vertically. The valve disc is spring loaded, and its quick closure can effectively reduce water hammer pressure, with good sealing performance and no noise during closure. It has advantages such as small volume, light weight, low fluid resistance, fatigue resistance, and long service life.

Product technical paramters:

Type Number:		HC41X-16Q
Nominal Pressure PN(MPa)		1.6, 2.5
Nominal Diameter DN(mm)		40～350
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		QT450, WCB
Medium suitable:		Water
Working temperature		80≤℃
Connection type		Flange
Operational method		Auto

Product features:

1. A "bullet head" shape design disc and a "waist drum" shape design body to improve the flow direction of the medium and reduce the flow resistance coefficient.
2. A short structure form, although the head loss is slightly larger than the lifting silent check valve, it is small in size and cheap in price.
3. Compact structure, equipped with non-metallic lubrication sleeve between the guide shaft and the guide frame, the valve disc can be lifted and lowered flexibly without any locking phenomenon.
4. The skeleton type rubber sealing ring is directly embedded on the valve body, avoiding direct erosion of the sealing ring by the medium for a long time, significantly extending its service life, and being sturdy and durable.
5. The short opening and closing stroke of the valve disc can effectively prevent water hammer.
6. Suitable for water supply and drainage systems, high-rise building pipe networks, can be installed at the outlet of pumps, with slight structural changes, can be used as a suction bottom valve, but not suitable for sewage pipe networks.
