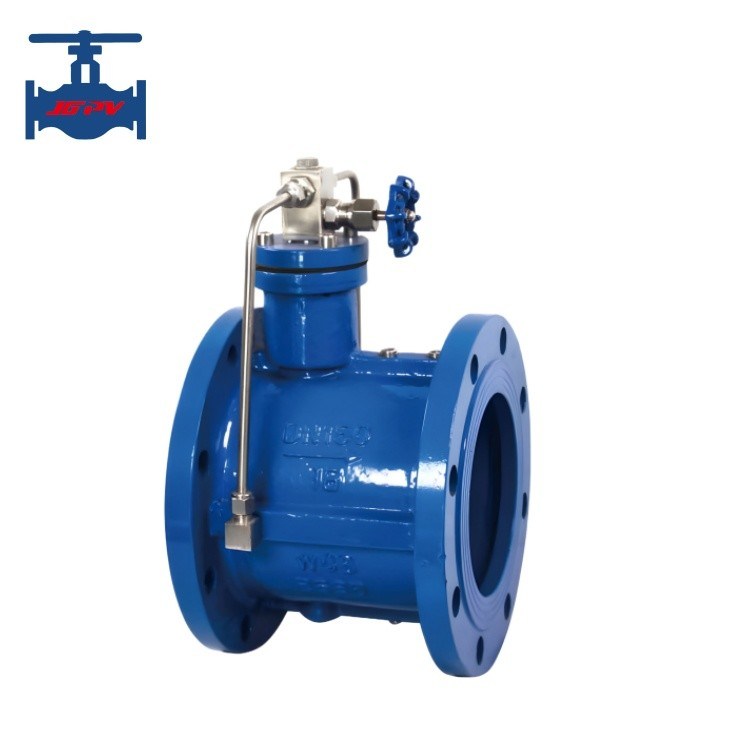

Micro Resistance Slow Closing Check Valve Butterfly Type Small Size Lightweight

Name: Micro Resistance Slow Closing Check Valve Butterfly Type Small Size Lightweight
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: HH46X-JGPV
Price: 6,559.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: HH46X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD119.9/Set - USD12999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Slow Closing Check Valve Butterfly Type, Slow Closing Check Valve Lightweight, Butterfly Check Valve  Small Size


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Water System Valve	Product Function:	Medium Backflow Prevention
Working Temperature:	Normal Temperature	Pressure Nominal:	10-16 Bars
Manufacturing Craft:	Casting	Port Size:	DN40-DN1000
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Slow Closing Check Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Water System Valve
Product Function:	Medium Backflow Prevention
Working Temperature:	Normal Temperature
Pressure Nominal:	10-16 Bars
Manufacturing Craft:	Casting
Port Size:	DN40-DN1000
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Slow Closing Check Valve

Micro Resistance Slow Closing Check Valve Butterfly Type Small Size Lightweight

Ductile Iron Cast Steel Micro Resistance Slow Closing Butterfly Type Check Valve

Product introduction:

HH46X series micro resistance slow closing butterfly type check valve are mainly composed of valve bodies, valve discs, buffer devices, and micro regulating valves. They can be used on industrial water supply and drainage pipelines for clean water, sewage, seawater, and other media, as well as at the outlet of sewage treatment plant water pumps. They can prevent the backflow of media and effectively limit destructive water hammer, ensuring the safety of pipeline use. It has the characteristics of novel structure, small volume, light weight, low fluid resistance, reliable sealing, smooth opening and closing, wear resistance, long service life, improper oil pressure and slow closing medium influence, and effective energy-saving effect

Product technical parameter:

1	Model number	HH47XF-10Q2
2	Sealing raw material	NBR oil-resistant
3	Working temperature	<80℃
4	Medium application	Water, sewage, oil, hot air etc.
5	Pressure nominal	1.0 MPa
6	Test pressure - strength test	1.5 MPa
7	Test pressure - sealing test	1.1 MPa
8	Power supply of solenoid valve	220V
9	Closing aid device working pressure	0.2-0.4 MPa
10	Closing time	Any adjustment within 3-30S

Product features:

1. Small in size, lightweight, and with a structural length only about one-third of that of a swing check valve.
2. The slow closing system has excellent performance and is not affected by the medium in the pipeline. The valve disc closes quickly first and then slowly, which can prevent destructive water hammer.
3. Rubber soft seal, good sealing performance, wear-resistant, and long service life.
4. Rubber cushioning, smooth opening and closing, no vibration, no noise.
5. Compared to old-fashioned check valves, it has a smaller flow resistance and significant energy-saving effect.
