ANSI GB Standard Cast Steel Stainless Steel Flanged Lift Check Valve for Water Steam Oil and Nitric Acid

Name: ANSI GB Standard Cast Steel Stainless Steel Flanged Lift Check Valve for Water Steam Oil and Nitric Acid
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: H41H-150LB
Price: 1,464.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: H41H-150LB

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD29.9/Set - 2899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                ANSI GB cast steel check valve, stainless steel flanged lift check valve, check valve for water steam oil


Standard Or Non-standard:	Standard	Application:	General
Standard:	ANSI, GB	Medium Type:	Water, Steam And Oil, Nitric Acid And Weak Corrosive Liquids
Working Temperature:	Normal And High Temperature	Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Cast Steel, Stainless Steel, Cast Iron	Seal Type:	Hard Seal
Port Size:	1/2" - 24"	Quality Warranty:	18 Months

Standard Or Non-standard:	Standard
Application:	General
Standard:	ANSI, GB
Medium Type:	Water, Steam And Oil, Nitric Acid And Weak Corrosive Liquids
Working Temperature:	Normal And High Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Cast Steel, Stainless Steel, Cast Iron
Seal Type:	Hard Seal
Port Size:	1/2" - 24"
Quality Warranty:	18 Months

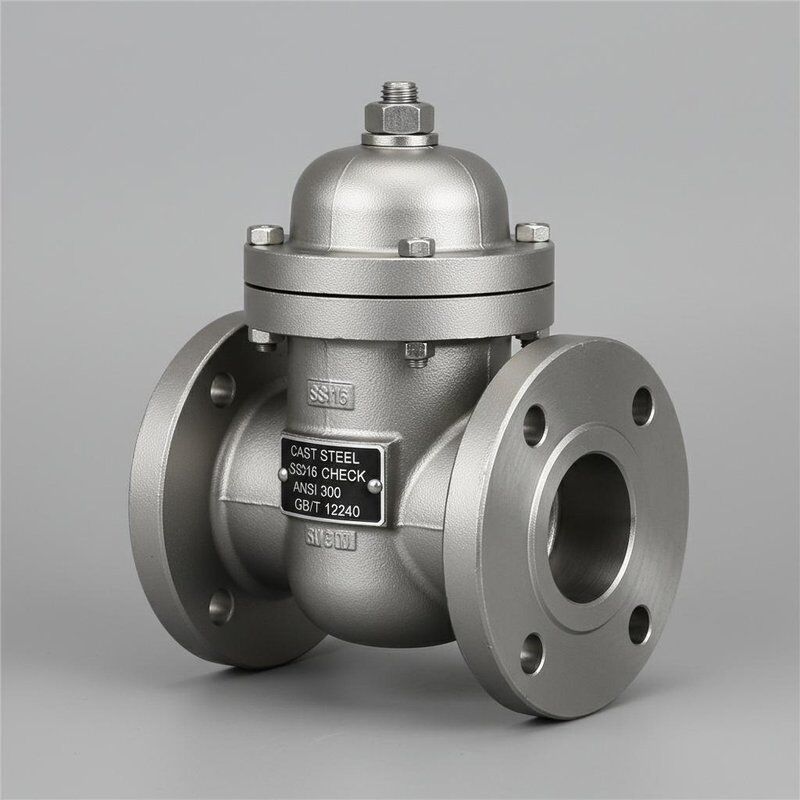

ANSI GB Standard Cast Steel Stainless Steel Flanged Lift Check Valve for Water Steam Oil and Nitric Acid

Cast Steel Stainless Steel Flanged Lift Check Valve ANSI GB Standard

Product Overview

Check valves, also known as automatic safety mechanisms, are designed to allow fluids and gases to flow in one direction while preventing reverse flow. These valves seal tightly to prevent leaks and ensure proper flow direction, protecting pumps and compressors from damage. Also referred to as one-way valves, they operate by allowing fluids to enter under pressure, pushing the disc away from the seat and out through the outlet. If pressure drops, the disc automatically returns to its seat to stop flow.

Lift check valves feature a disc that slides along the centerline of the valve body. This pipeline check valve design offers small volume, light weight, and excellent processing technology, representing a key development direction for check valves. While providing robust, long-lasting performance with high-quality materials, they have a slightly higher fluid resistance coefficient compared to swing check valves.

Technical Specifications

Parameter	Specification
Type Number	Z41W-JGPV
Nominal Pressure PN (MPa)	1.0 - 10.0
Nominal Diameter DN (mm)	15-300
Test Pressure (MPa)	Strength (water): 1.5×PN Sealing (water): 1.1×PN
Raw Material	CF8, CF8M, CF3, CF3M
Suitable Medium	Water, steam, oil, nitric acid, and other corrosive media
Working Temperature	≤200℃
Connection Type	Flange
Operational Method	Automatic

Industry Applications

Fertilizer Industries
Pulp and Paper Industries
Industrial Chemical Piping Industries
Oil and Gas Industries
Petrochemical Industries
Textile and Process Industries
Thermal and Nuclear Power Industries

Specific Applications

Gas pipelines to prevent harmful backflow of natural gas and other gases
Water treatment facilities to prevent contaminated water backflow into pure water supply
Medical equipment including infusion pumps and respirators for fluid flow control
Fire protection systems to maintain effectiveness by preventing backflow of firefighting materials

Product Advantages

Low Maintenance

Cost-Effective

Energy Efficient

Reduced Noise

Space-Saving

Improved System Efficiency

Prevents Water Hammer

Prevents Backflow

Easy Installation
