Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: X43F-150LB
Payment & Shipping Terms
Minimum Order Quantity: 10 sets
Price: USD89.9/pc - USD6950/pc
Packaging Details: Plywood box safety packing
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300sets per month
Standard Or Non-Standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Pipeline Cut-off Or Connection |
Working Temperature: |
Normal Temperature |
Working Pressure: |
Low And High Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Steel And Stainless Steel |
Quality Warranty: |
18 Months |
Test Standard: |
API 598 |
Standard Or Non-Standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve |
Purpose: |
Pipeline Cut-off Or Connection |
Working Temperature: |
Normal Temperature |
Working Pressure: |
Low And High Pressure |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Steel And Stainless Steel |
Quality Warranty: |
18 Months |
Test Standard: |
API 598 |
Product introduction:

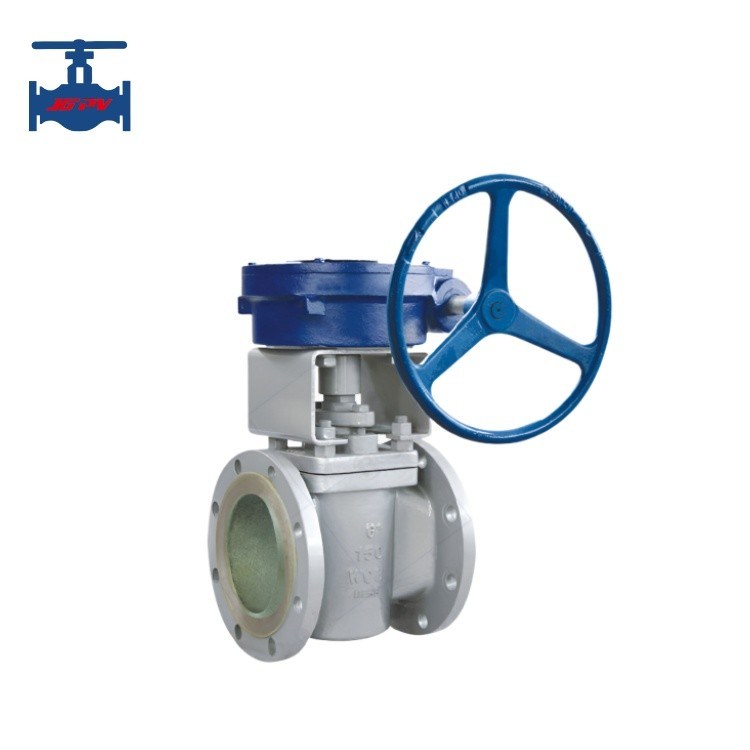

The ANSI standard card sleeve soft seal plug valve is a high-performance valve widely used in industries such as petroleum, chemical, and natural gas. Its design complies with American standards (ANSI/API), with excellent sealing performance and durability, especially suitable for high-pressure, high-temperature, and corrosive media working conditions.
Product technical parameter:
| Model | X43F- JGPV |
| Pressure nominal | 150LB/300LB |
| /300Port size | 1/2" - 12" |
| Sealing type | PTFE |
| Test pressure (Strength) | 1.5 times of pressure nominal |
| Test pressure (Sealing) | 1.1 times of pressure nominal |
| Working temperature | -29~180℃ |
| Medium application | Water, steam and oil etc. |
| Connection | Flange, screw and weldable connections |
| Driven method | Hand-wheel, bevel gear and electric actuator optional |
| Installation range | Chemical, oil & gas, petrochemical, food and beverage, energy, LNG & LPG, technical gases system pipelines |
Product features:
1. Soft seal design: PTFE or other polymer materials are used as seals to ensure zero leakage and superior sealing performance.
2. Card sleeve connection: The sleeve connection is easy to install, has reliable sealing, and is suitable for frequent disassembly occasions.
3. Corrosion resistance: The valve body and internal components are made of stainless steel or other corrosion-resistant materials, suitable for various corrosive media.
4. Flexible operation: The plug design allows the valve to open and close quickly, with a small operating torque, making it easy to control manually or automatically.
5. Suitable for high pressure and high temperature: The structure is sturdy and can operate stably in high pressure and high temperature environments.
