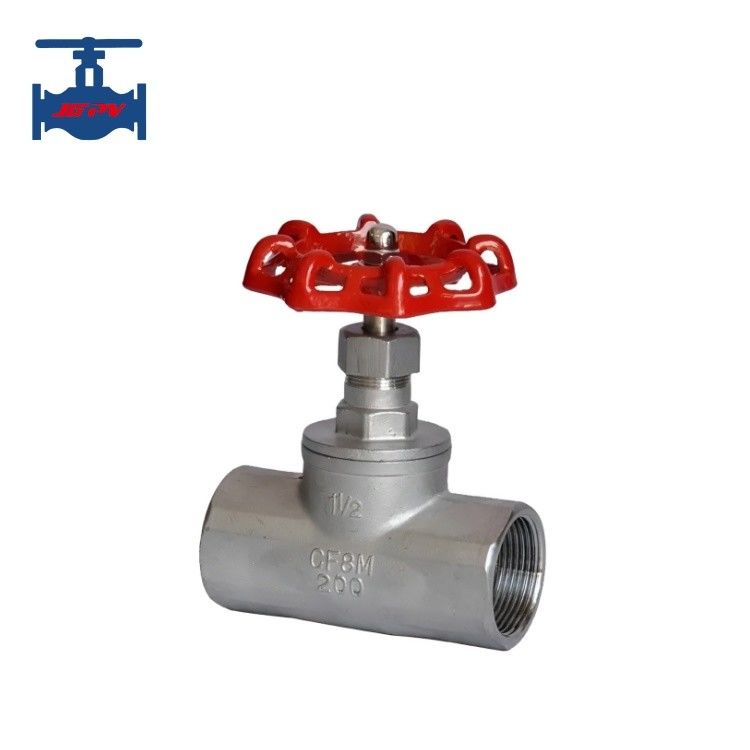

Globe valve

Highlight: Globe valve

Product introduction:Globe valve

Globe valve is a kind of cut-off valve, its sealing is by applying torque to the valve stem, the stem in the axial direction to apply pressure to the valve disc, so that the disc sealing face and seat sealing face tightly fit, prevent media leakage along the gap between the sealing face.The sealing pair of globe valve consists of the disc sealing face and the seat sealing face. The stem drives the disc to move vertically along the center line of the seat.The opening height of the globe valve is small in the opening and closing process, which is easy to adjust the flow rate, convenient for manufacturing and maintenance, and wide applicable range of pressure.

Product technical parameters:

Product features:

1. In terms of structure, globe valve is simpler than gate valve. There is only one sealing surface on the valve body and valve disc, which has good manufacturing technology and is easy to manufacture and maintain.Globe valve in the full closing process of the disc travel is small, its height is relatively small gate valve.

2. The opening height of the globe valve is small in the opening and closing process. The opening height is generally only 1/4 of the diameter of the valve seat channel and has very reliable cutting action, which is easy to adjust the flow.

3. From the service life, once in the open state, there is no contact between the seat and the sealing surface of the disc, the sealing surface is not easy to wear and scratch, so it improves the service life of the seal.

4. The globe valve only allows one-way flow of media, directional installation, the length of the globe valve structure is greater than the gate valve.

5. The opening and closing torque of globe valve is large and it is difficult to realize fast opening and closing. Moreover, the flow passage in the valve is tortuous and the fluid flow resistance is large, resulting in a large loss of fluid power in the pipeline

6. When the medium from below the valve disc into the valve, the operation force needs to overcome the resistance, is the friction of the stem and packing and the thrust produced by the pressure of the medium,

7. Globe valve closing valve force is larger than opening valve force, so the stem diameter should be large, otherwise stem top bending failure will occur.
