Class 150 4inch Lever Operated Floating Ball Valve with Flange Connection for High Temperature Applications

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Class 150 Floating Ball Valve, 4inch Floating Ball Valve, Lever Operated Floating Ball Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Class 150 4inch Lever Operated Floating Ball Valve with Flange Connection for High Temperature Applications

Class 150 4inch Lever Operated Cast Steel Two-Piece Floating Ball Valve

Designed for high temperature water, steam, and oil applications with flange connection.

Product Overview

The two-piece internal thread ball valve consists of valve body, valve ball, valve stem, valve seat and other components. The valve body features two hemispheres connected by threads with a spherical valve ball that rotates to control flow. Key characteristics include:

Simple yet robust construction
Excellent sealing performance
Easy operation with lever handle
Long service life in demanding applications

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	15-200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Robust construction for high temperature, high pressure, and corrosive media applications
Elastic sealing materials ensure reliable performance and extended service life
Excellent corrosion resistance for chemical, petroleum, and metallurgical industries
Heavy-duty operation with substantial opening/closing torque
Fixed flange connection method for secure installation
Ideal for large-diameter and high-pressure applications

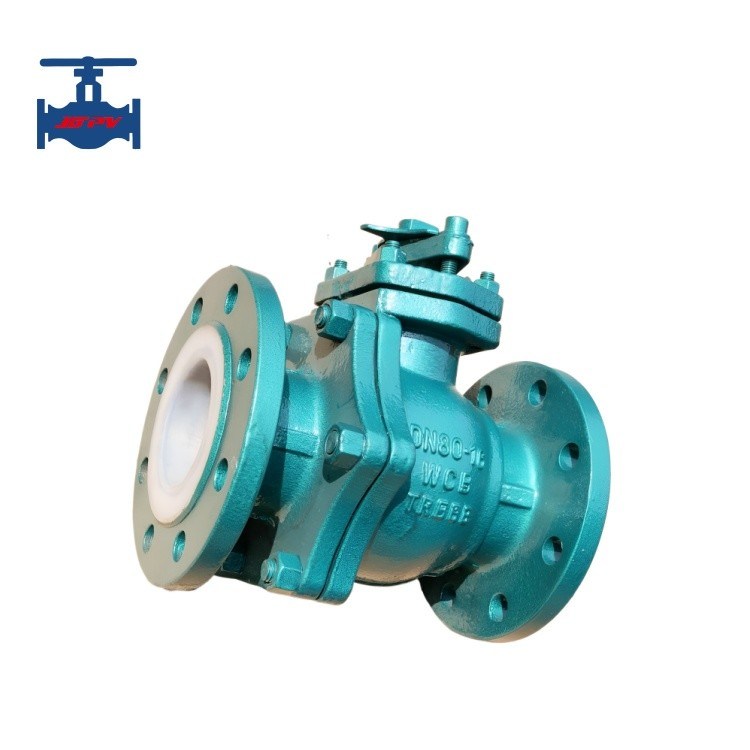

Product Images
