Stainless Steel Flanged Globe Valve with Bevel Gear and 18 Months Warranty for Pneumatic Actuation

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                18 Months Warranty Globe Valve, Bevel Gear Flanged Globe Valve, Pneumatic Actuation Globe Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

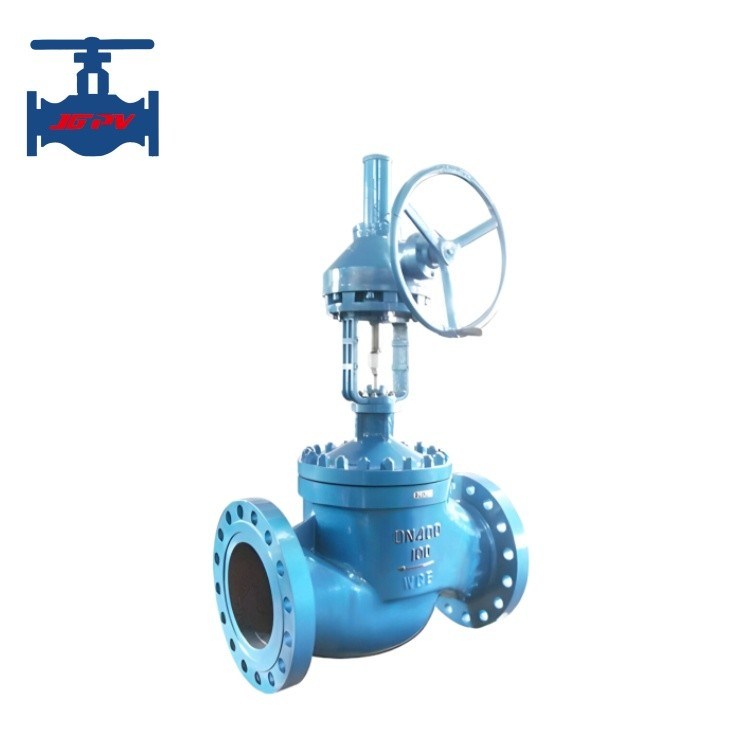

Stainless Steel Flanged Globe Valve with Bevel Gear and 18 Months Warranty for Pneumatic Actuation

Stainless Steel Globe Valve with Bevel Gear Flange

Product Overview

Globe valve, also known as shut-off valve, is a type of forced sealing valve. The valve stem axis is perpendicular to the sealing surface of the valve seat, and the valve is opened and closed by driving the valve core up and down.

Technical Specifications

Parameter	Value
Diameter nominal (mm)	15-300
Pressure nominal (MPa)	1.0-6.4
Pressure test Ps(MPa)	Strength test: 2.4-9.6 Sealing test: 1.8-7.0
Medium applicable	Water, steam and oil etc.
Working temperature	-29℃ to 425℃
Connection method	Flange

Key Features

Simpler structure than gate valves with only one sealing surface, making it easier to manufacture and maintain
Small opening height (generally 1/4 of valve seat channel diameter) with reliable cutting action and easy flow adjustment
Extended service life as sealing surfaces don't contact in open state, reducing wear
Unidirectional flow design with directional installation requirements
Large opening/closing torque makes fast operation difficult, with tortuous flow path creating higher fluid resistance
Requires larger stem diameter to prevent bending failure due to high closing forces
