Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: J41W-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD39.9/Set to USD5799.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Purpose: |
Flow Rate Regulation |
Working Temperature: |
Normal And High Temperature |
Pressure Nominal: |
Low, Medium And High Pressure |
Port Size: |
DN15-DN600 |
Flow Direction: |
Uni-directional |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Warranty: |
18 Months |
Name: |
Flanged Globe Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Purpose: |
Flow Rate Regulation |
Working Temperature: |
Normal And High Temperature |
Pressure Nominal: |
Low, Medium And High Pressure |
Port Size: |
DN15-DN600 |
Flow Direction: |
Uni-directional |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Warranty: |
18 Months |
Name: |
Flanged Globe Valve |

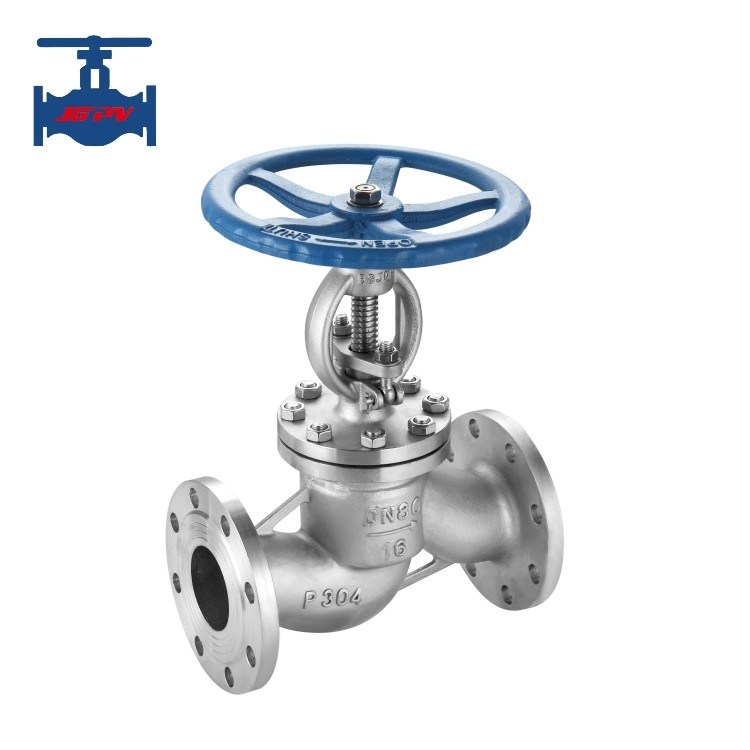

Stainless Steel CF8 CF8M Flanged Globe Valve For Nitric Acid Corrosive Medium Pipeline Use
Product introduction:
Globe valve is a kind of cut-off valve, its sealing is by applying torque to the valve stem, the stem in the axial direction to apply pressure to the valve disc, so that the disc sealing face and seat sealing face tightly fit, prevent media leakage along the gap between the sealing face.
The sealing pair of globe valve consists of the disc sealing face and the seat sealing face. The stem drives the disc to move vertically along the center line of the seat.The opening height of the globe valve is small in the opening and closing process, which is easy to adjust the flow rate, convenient for manufacturing and maintenance, and wide applicable range of pressure.
Product parameter:
| Type Number: | J41W-JGPV | |
| Nominal Pressure PN(MPa) | 1.0 - 10.0 | |
| Nominal Diameter DN(mm) | 15～300 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | CF8, CF8M, CF3, CF3M, | |
| Medium suitable: | Water, steam, oil and nitric acid etc corrosive medium | |
| Working temperature | 200≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Product features:
1. Globe valve with small friction between the sealing surface in the process of opening and closing;
2. Globe valve with low opening height, easy to manufacture and maintain.
3. Globe valve not only suitable for low pressure, but also suitable for high pressure.
4. The structure length of globe valve is larger than gate valve, meanwhile, the fluid resistance is large, and the sealing reliability is not strong in long-term operation.
