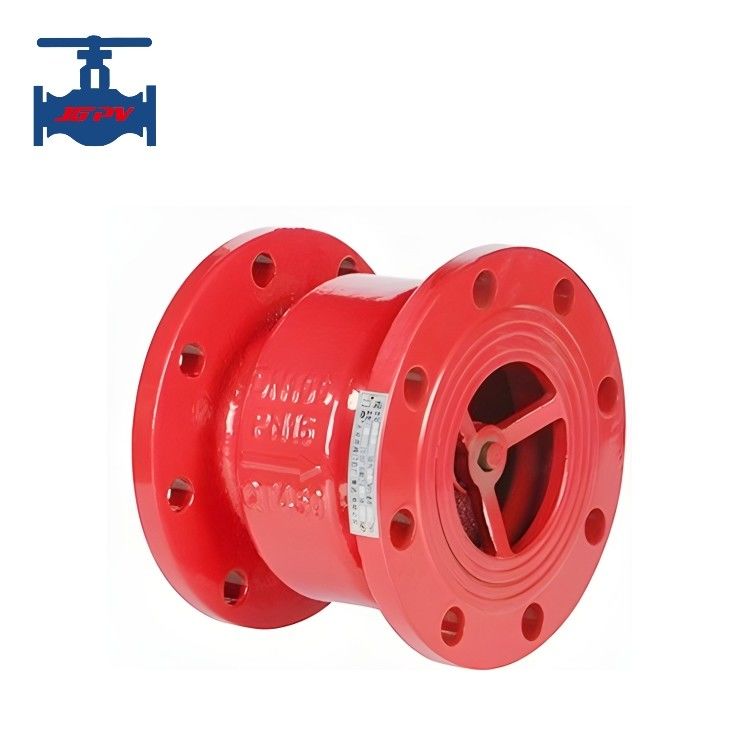

Ductile Iron Cast Steel Silent Check Valve Soundproof For Water Pipeline

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: HC41X-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD29.9/Set - 2899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price
Highlight:

Cast Steel Silent Check Valve

,

Silent Check Valve Soundproof

,

Ductile Iron Silent Check Valve

Standard Or Non-standard:
Standard
Application:
General
Standard:
GB DIN
Medium Type:
Water And Sewage And Fire Fighting System Use
Working Temperature:
Normal Temperature
Pressure Application:
Low Pressure
Manufacturing Craft:
Casting
Body Material:
Ductile Iron
Port Size:
DN40-DN500
Quality Warranty:
18 Months
Standard Or Non-standard:
Standard
Application:
General
Standard:
GB DIN
Medium Type:
Water And Sewage And Fire Fighting System Use
Working Temperature:
Normal Temperature
Pressure Application:
Low Pressure
Manufacturing Craft:
Casting
Body Material:
Ductile Iron
Port Size:
DN40-DN500
Quality Warranty:
18 Months
Ductile Iron Cast Steel Silent Check Valve Soundproof For Water Pipeline

Ductile Iron Cast Steel Soundproof Silent Check Valve For Water Pipeline Use

Product introduction:

The HC41X soundproof check valve disc adopts central axis guidance at both ends of the inlet and outlet, with flexible opening and closing, and can be installed horizontally or vertically, with good sealing performance and no noise during closure, it normally used in water pipeline, fire fighting system to prevent water flow backward, and its spring load disc, quick closure can effectively reduce water hammer pressure.

Product technical paramters:

Type Number: HC41X-16Q
Nominal Pressure PN(MPa) 1.6, 2.5
Nominal Diameter DN(mm) 40~350
Test pressure (MPa) Strength (water) 1.5 times of pressure nominal
Sealing (water) 1.1 times of pressure nominal
Raw material QT450, WCB
Medium suitable: Water
Working temperature 80≤℃
Connection type Flange
Operational method Auto





Product features:

1. Slient check valve with "bullet head" and "waist drum" shape design, which improve medium flow direction and reduce the flow resistance coefficient.
2. Slient check valve with short structure make it small size and lower manufacturing cost.
3. Slient check valve equipped with non-metallic lubrication sleeve between the guide shaft and the guide frame, the valve disc can be lifted and lowered flexibly without any locking phenomenon.
4. The skeleton type rubber sealing ring is directly embedded on the valve body, avoiding direct erosion of the sealing ring by the medium for a long time, significantly extending its service life, and being sturdy and durable.
5. The short opening and closing stroke of the valve disc can effectively prevent water hammer.
6. Suitable for fire fighting system, water supply, drainage systems, high-rise building pipe networks, and can be installed at the outlet of pumps as a suction bottom valve.
