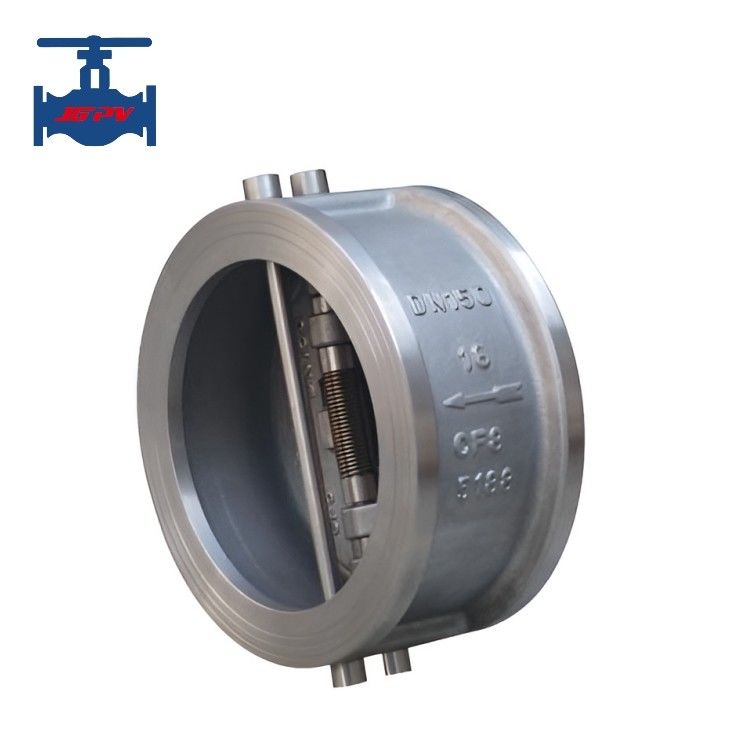

ANSI Standard Stainless Steel Dual Plate Wafer Check Valve For Corrosive Medium
ANSI Standard Stainless Steel Dual Plate Wafer Type Check Valve For Corrosive Medium Use
Product introduction:
Double disc check valve consists of valve body, valve disc, valve rod, and spring parts etc. The check valve adopts wafer type, butterfly plate is two semicircular, and adopts spring forced reset, sealing surface can be body hard-facing wear-resistant material or rubber lining, wide range of use, reliable sealing.
The disc shutoff stroke is very short and under the effect of the spring, the valve can close quickly and prevent the big noise from water-hammering. It is widely used in water supply and drainage system, high-rise building and industrial park, because of its surface distance is short than other check valve, so it is more convenient for the confined space installation.
Product technical paramters:
| Nominal Diameter DN (mm) |
1/2" - 24" |
| Nominal Pressure PN (MPa) |
150lb |
| Test Pressure (MPa) |
Strength (water) |
2.94 |
| Enclose (Water) |
2.16 |
| Main Components |
Valve body |
Ductile iron, WCB, Stainless steel |
| Disc |
Ductile iron, WCB, Stainless steel |
| Seat |
NBR |
| Spring |
Stainless steel |
| Axle |
Stainless steel |
| Working temperature |
≤250℃ |
| Medium suitable |
Water, steam and oil |
| Connection |
Wafer type |
Product features:
1.Compact and portable, easy to remove and maintain, and can be installed at any position;
2. Its flow characteristic tends to be straight line and it is of great regulating performance;
3. Sealing valve seat adopts multiple narrow belt design, valve seat is directly vulcanized to the valve body, so that the sealing reliability is greatly improved, to achieve complete sealing, zero leakage
4. Safe and reliable structure performance, strong anti-interference, fast closing speed, small head loss.
5. Short structure length, good rigidity, easy installation.
6. The main parts of the material can be selected from a wide range of media range.
7. It is suitable for water supply pipe network of high-rise buildings, pipe network with limited installation space, fire fighting and heating pipe network.
