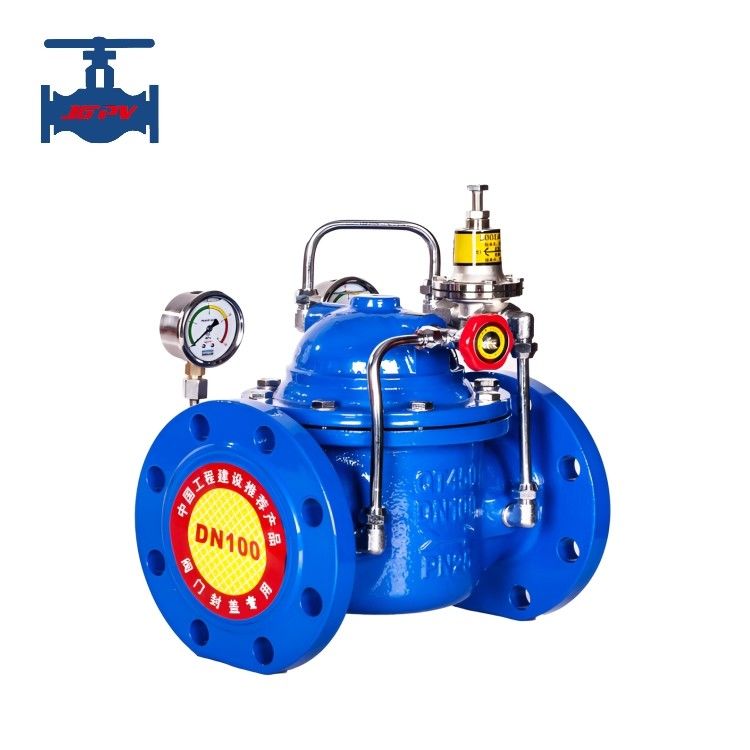

Pilot Operated Adjustable Pressure Reducing Valve

Name: Pilot Operated Adjustable Pressure Reducing Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: 200X-JGPV
Price: 2,430.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: 200X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD72.9/Set - 4789.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Pilot Operated Adjustable Pressure Reducing Valve, Ductile Iron Adjustable Pressure Reducing Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Function:	Water Pipeline Pressure Control	Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Ductile Iron And Stainless Steel	Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Water Pipeline Pressure Control
Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Ductile Iron And Stainless Steel
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Pilot Operated Adjustable Pressure Reducing Valve

Ductile Iron Pilot Operated Adjustable Pressure Reducing Valve

Product introduction:

Pilot operated pressure reducing valve 200X series is designed and manufactured by our company based on advanced products from France and United States. The valve body adopts a full channel streamline design, with low fluid resistance and high flow rate. The transmission method adopts hydraulic control, which uses the water pressure in the pipeline to automatically operate the up and down movement of the main valve disc, control the valve opening, adjust the downstream pressure, and maintain the downstream pressure at the pressure value set by the pilot valve spring. When the downstream pressure exceeds the set value, the pressure reducing valve will automatically close to ensure that the outlet pressure remains unchanged. In summary, this pressure reducing valve is an ideal product for domestic water, fire protection systems, and industrial water supply

Product technical parameter:

Pressure nominal (MPa)	1.0	1.6	2.5
Strength test pressure (MPa)	1.5	2.4	3.75
Sealing test pressure (MPa)	1.1	1.76	2.75
Max inlet pressure (MPa)	1.0	1.6	2.5
Outlet pressure adjustment range (MPa)	0.09-0.8	0.15-1.2	0.15-1.6
Working temperature	≤80℃
Medium application	Water

Product features:

1. Accurate pressure reduction: Pilot operated pressure reducing valve is suitable for pipeline systems of different pressure levels and can achieve effective pressure reduction from high pressure to low pressure.

2. High stability: The pressure reducing valve controls the system pressure by adjusting the valve opening, which has the characteristic of high stability and can maintain a relatively constant pressure output within a given range.

3. Sensitivity and fast response: The pressure reducing valve responds quickly to pressure changes and can quickly adjust the valve opening to adapt to changes in system pressure.

4. Safe and reliable: pressure reducing valve has a reliable structure, long service life, and is relatively easy to maintain and repair.
