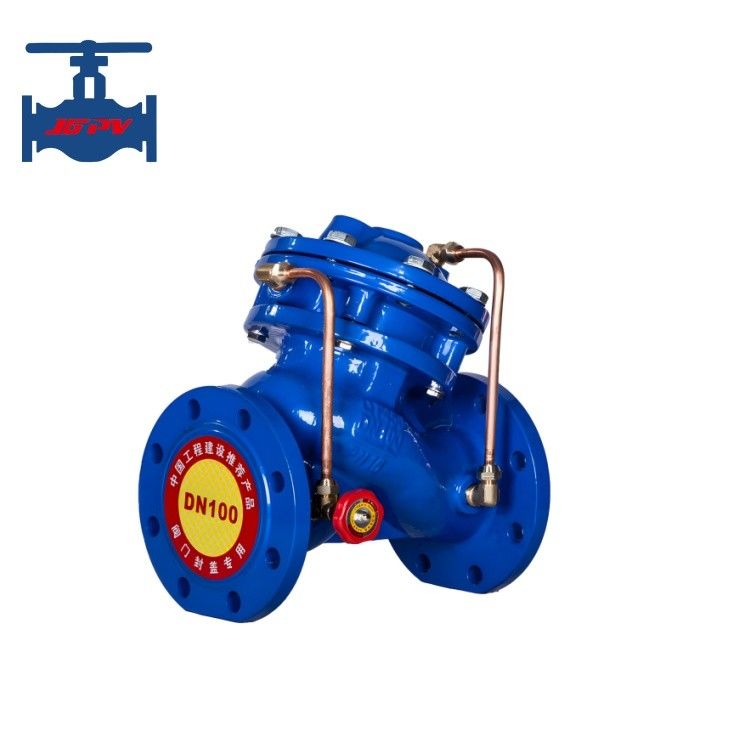

Multifunctional Water Pump Control Valve

Name: Multifunctional Water Pump Control Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: 745X-JGPV
Price: 2,234.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: 745X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD79.9/Set - 4389.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Multifunctional Water Pump Control Valve, Cast Steel Water Pump Control Valve, Ductile Iron Water Pump Control Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Function:	Pressure Holding And Safety Relief Control	Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Ductile Iron, Cast Steel And Stainless Steel	Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Pressure Holding And Safety Relief Control
Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Ductile Iron, Cast Steel And Stainless Steel
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Multifunctional Water Pump Control Valve

Ductile Iron Cast Steel Multiple Functional Pump Control Valve

Product introduction:

The multifunctional water pump control valve is an intelligent valve installed at the pump outlet of the water supply system and other water supply systems in high-rise buildings to prevent medium backflow and water hammer phenomena. This valve combines three functions: electric valve, check valve, and water hammer eliminator.

The multifunctional water pump control valve can effectively protect the safety and reliability of the water supply system, and integrate the technical principles of slow opening and slow closing to eliminate water hammer, preventing the occurrence of water hammer when starting and stopping the pump. Simply operate the water pump motor on/off button, and the valve can automatically open and close according to the water pump operating procedures, it is with high flow rate and low pressure loss.

Product technical parameter:

Nominal Diameter DN (mm)		50~300
Nominal Pressure PN (MPa)		1.6/2.5
Test Pressure (MPa)	Strength (water)	2.4/3.8
	Enclose (Water)	1.8/2.8
Open and close pressure difference		≤0.1MPa
Working temperature		0~80℃
Medium suitable		Water

Product features:

1. High safety and reliability. It has three measures to eliminate water hammer: quick closing, slow closing, and energy absorbing chamber, and the action is completely interlocked, without causing any misoperation.

2. No operational control required. When the water pump starts and stops, cleverly use the medium and pressure difference at both ends of the valve as the driving medium and control power, so that the valve automatically operates according to the requirements of the water pump operation regulations.

3. No need for professional debugging. The valve action is not affected by the liquid level difference, outlet pressure, and changes in water pump flow rate, and has a wide range of adaptability.

4. Basically no maintenance required, long lifespan.

5. The energy-saving effect is significant. By utilizing the pressure at the inlet end to enter the lower chamber to support the weight of the diaphragm pressure plate and valve stem, the resistance loss is minimal.
