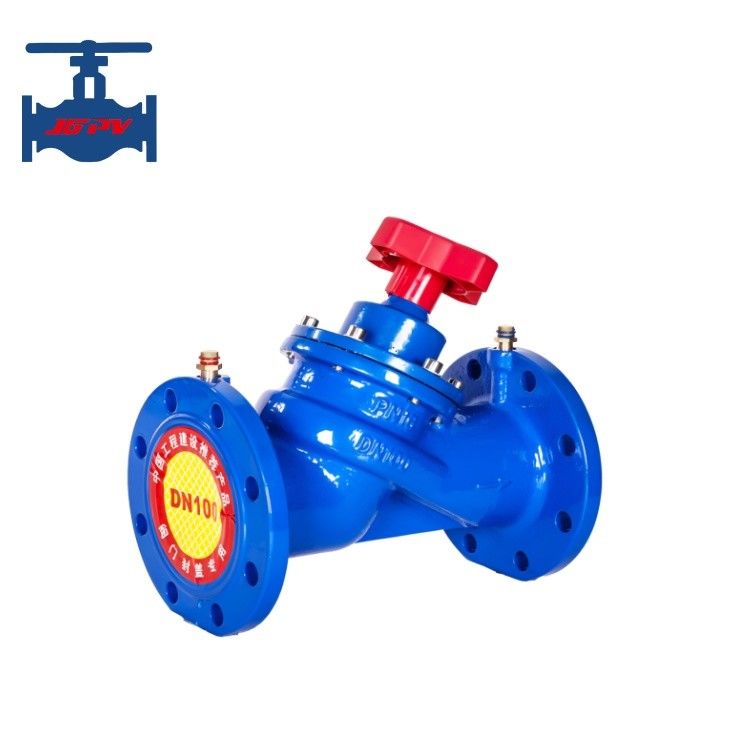

Digital Lock Hydraulic Balancing Valve Standard For Water Pipeline

Name: Digital Lock Hydraulic Balancing Valve Standard For Water Pipeline
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: SP45F-16Q
Price: 519.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: SP45F-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD39.9/Set - USD999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Digital Lock Hydraulic Balancing Valve, Hydraulic Balancing Valve Standard


Name:	Hydraulic Water Control Valve	Standard Or Non-standard:	Standard
Application:	General	Product Features:	Air Conditioning System Valve
Medium Type:	Water	Working Temperature:	Normal Temperature
Pressure Nominal:	16 Bars	Manufacturing Craft:	Casting
Port Size:	DN32-DN400	Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Name:	Hydraulic Water Control Valve
Standard Or Non-standard:	Standard
Application:	General
Product Features:	Air Conditioning System Valve
Medium Type:	Water
Working Temperature:	Normal Temperature
Pressure Nominal:	16 Bars
Manufacturing Craft:	Casting
Port Size:	DN32-DN400
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Digital Lock Hydraulic Balancing Valve Standard For Water Pipeline

Ductile Iron New Type Digital Lock Balancing Valve For Water Pipeline Use

Product introduction:

Digital lock balancing valve is a static hydraulic condition balance valve, it has equal percentage flow characteristic curve, suitable in the centralized volume regulation, centralized mass regulation and phased change flow rate of the volume regulation system, when the system flow rate changes, the flow of each user used branch pipeline which installed balancing valve will increase or decrease in proportion to maintain the initial adjustment of the flow distribution scheme

Digital lock balancing valve can be for a variety of liquids pipeline system, is an ideal new energy-saving valve, its digital display scale can be directly transferred to any location, and can be locked. It is mainly used in industrial and civil heating piping system, there are hydraulic imbalance problems in some pipeline system, this digital lock balancing valve provides a means to solve this problem, it can be use an accurate pressure drop and flow regulation to improve the pipeline system in the liquid flows, to control net fluid balance and energy savings.

Product technical parameter:

Nominal Diameter DN (mm)		32~300
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Valve body	QT450-10
	Bonnet	QT450-10
	Disc	QT450-10
	Shaft	2Cr13
	Seat	PTFE
	Sealing ring	EPDM
Working temperature		-10~100℃
Medium suitable		Water
Characteristic curve		Equal percentage

Product features:

1. Ideal adjustment performance;

2. Excellent cut-off function;

3. Acurate to 1/10 turn of the open state display;

4. The theoretical flow characteristic curve is equal percentage characteristic curve;

5. national patent opening and closing locking device;

6. corresponding to each whole circle has a fixed flow coefficient, debugging as long as the pressure difference between the two ends of the valve is measured, it can be convenient to calculate discharge flow through the valve.
