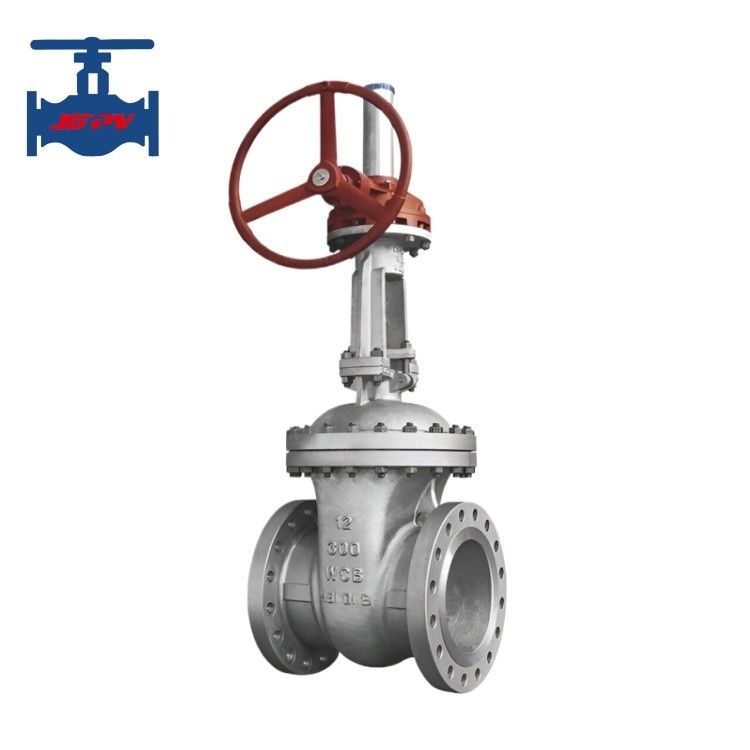

Bevel Gear Operated Wedged Gate Valve

Name: Bevel Gear Operated Wedged Gate Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z541H-300lb
Price: 7,538.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Z541H-300lb

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD79.5/pc - USD14999/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                API600 Standard Wedged Gate Valve, Wedged Gate Valve WCB


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Pipeline Use	Purpose:	Pipeline Opening And Close
Working Temperature:	Normal And High Temperature	Pressure Application:	Low Medium And High Pressure
Body Material:	Cast Steel	Seal Type:	Metal Seal
Test Standard:	Strength Test, Sealing Test And Other Client Needs	Quality Warranty:	18 Months
Name:	Rising Stem Gate Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Pipeline Use
Purpose:	Pipeline Opening And Close
Working Temperature:	Normal And High Temperature
Pressure Application:	Low Medium And High Pressure
Body Material:	Cast Steel
Seal Type:	Metal Seal
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months
Name:	Rising Stem Gate Valve

Bevel Gear Operated Wedged Gate Valve

API600 Standard WCB CF8 CF8M Rising Stem Bevel Gear Operated Wedged Gate Valve

Product Introduction:

Gate valve is a valve product in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Compliance with API600 standard, our cast steel stainless steel gate valve products are widely used as opening and closing devices for connecting or cutting off media in oil and steam pipelines in petrochemical, thermal power plants, and other oil and steam pipelines. It is designed with full pass design, rising stem, bolted valve cover, rigid or elastic wedge gate, replaceable valve seat, forged T-head valve stem, lifting or non lifting hand-wheel, flange or butt welding end, manual, bevel gear, pneumatic and electric etc. multiple operation modes.

Product Technical Parameters:

Type Number:		Z41W-JGPV
Nominal Pressure (Class)		150lb/300lb/600lb
Nominal Diameter (Inch)		1/2" - 48"
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

1. The design of thrust bearing makes valve opened easily and flexibly.

2. Packing uses flexible graphite for dependable sealing performance, if requested by users, packing spacer ring and greasing mechanism can be available.

3. Upper seal design to ensure dependable packing and sealing when valve is fully opened (replacement of packing under pressure is not recommended)

4. Lift stem, with stem and disc connected by T-slot, and stem T head integrally forged to ensure sufficient strength of joint.
