Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 Certified Gate Valve, ISO14001 Certified Flange Gate Valve, A216-WCB Cast Steel Gate Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Turbo Forged Flange Gate Valve with ISO9001 ISO14001 Certification and A216-WCB Cast Steel Construction

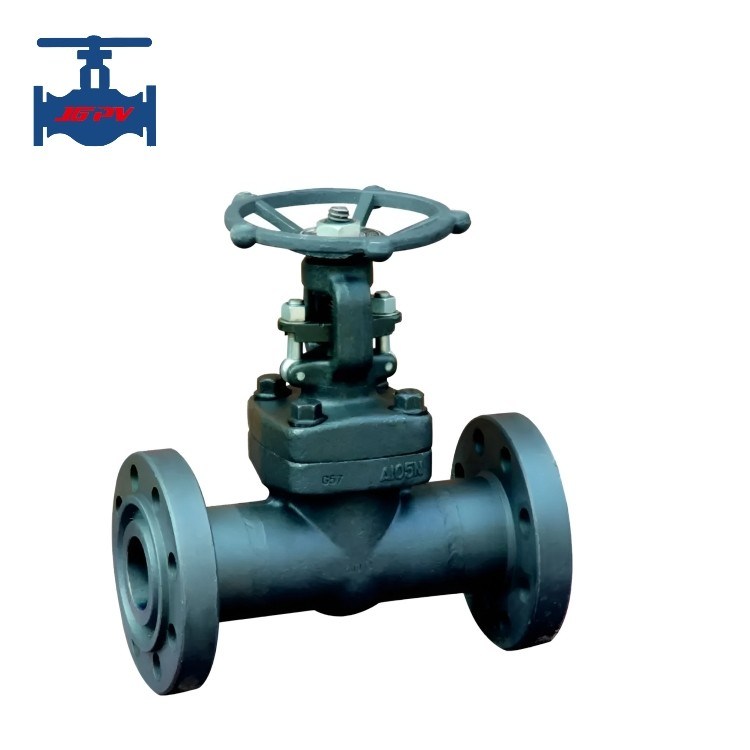

Turbo Forged Flange Gate Valve

Product Overview

Gate valves are vertical closure valves where the gate moves along the centerline of the passage, designed exclusively for full open/close pipeline isolation (not for flow regulation or throttling).

Primary Applications:

Industrial automation control in power generation, metallurgy, petrochemicals, environmental protection, energy management, and fire protection systems.

Technical Specifications

Parameter	Value
Nominal Diameter (mm)	15-300
Nominal Pressure (MPa)	1.6
Test Pressure (MPa)	Strength (Water): 2.4 \| Enclose (Water): 1.76
Main Components	Body: A216-WCB Bonnet: A216-WCB Stem: 2Cr13 Gasket: PTFE Packing: Soft graphite
Compatible Media	Water, steam, oil
Operating Temperature	-29℃ to 425℃
Connection Type	Flange
Standard Operation	Hand wheel
Optional Actuation	Bevel gear, pneumatic, electric actuators

Key Features

Low flow resistance design
Minimized medium erosion on sealing surfaces
Compact structure with effortless operation
Bidirectional flow capability with no pressure drop
Versatile installation orientation
Robust construction with high temperature/pressure resistance
