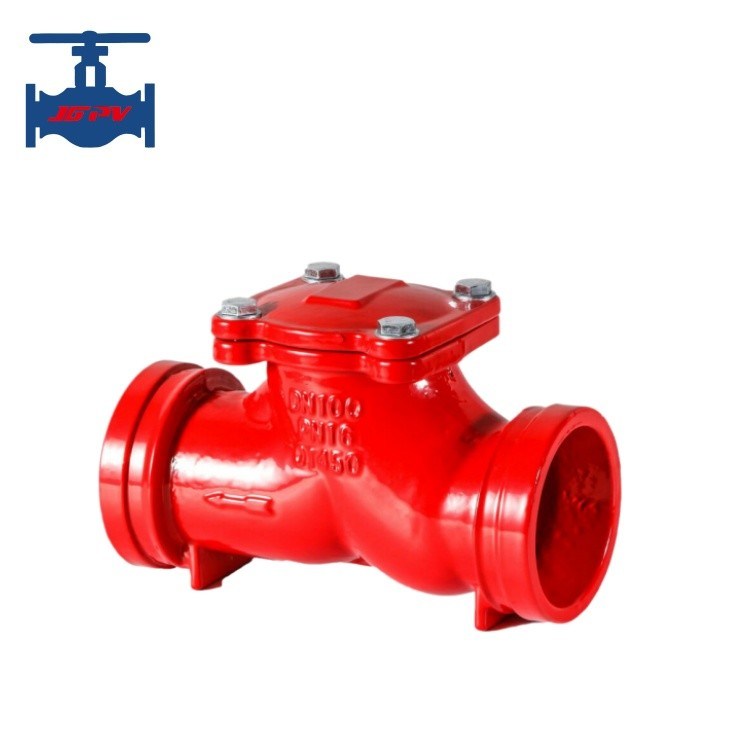

Clamp Type Slide Ball Type Check Valve For Fire Fighting System

Name: Clamp Type Slide Ball Type Check Valve For Fire Fighting System
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: HQ81X-JGPV
Price: 18.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: HQ81X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD15.9/Set - 23.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Clamp Type Ball Type Check Valve, Slide Ball Type Check Valve


Name:	Ball Type Check Valve	Application:	General
Product Function:	Fighting Pipeline Water Backflow Prevention	Construction:	Ball Type
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Ductile Iron	Quality Warranty:	18 Months

Name:	Ball Type Check Valve
Application:	General
Product Function:	Fighting Pipeline Water Backflow Prevention
Construction:	Ball Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Ductile Iron
Quality Warranty:	18 Months

Clamp Type Slide Ball Type Check Valve For Fire Fighting System

Fire Fighting System Use Ductile Iron Clamp Type Slide Ball Type Check Valve

Product introduction:

Fire fighting valve products are control accessories on industrial and building pipelines. Fire fighting valve is the most important controlled accessory on industrial and building pipelines, normally consisting of valve body, opening and closing mechanism, and valve cover. Simple structure and reliable sealing.

The HQ81X series slide ball type check valve adopts a rubber wrapped rolling ball as the valve. Under the action of the medium, it can roll up and down on the integral slide of the valve body, thereby opening or closing the valve. The sealing performance is good, and it closes when silencing without producing water hammer. The valve body adopts a full water flow channel, with high flow rate and low resistance. The loss of the faucet is 50% less than that of the rotary valve. It can be installed horizontally or vertically and can be used in cold water, hot water, industrial and domestic sewage pipelines. It is more suitable for submersible sewage pumps, with a medium temperature of 0-80 ℃. Can be installed at the water outlet to prevent backflow and water hammer damage to the pump.

Product technical parameter:

Nominal Diameter DN (mm)		50~100
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.76
Working temperature		0~80℃
Medium suitable		Water

Product features:

1. The slide ball type check valve body adopts a full water flow channel, with high flow rate and low resistance, and 50% less water loss than the rotary valve.

2. The slide ball type check valve can be installed horizontally or vertically and can be used in cold water, hot water, industrial and domestic sewage pipelines.

3. The slide ball type check valve is more suitable for submersible sewage pumps, with a medium temperature of 0-80 ℃. Can be installed at the water pump outlet to prevent backflow and water hammer damage to the pump.
