Diaphragm Type Adjustable Pressure Reducing Valve And Stabilizing Valve Ductile Iron

Ductile Iron Diaphragm Type Adjustable Pressure Reducing And Stabilizing Valve

Product introduction:

Fire fighting valve products are control accessories on industrial and building pipelines. Fire fighting valve is the most important controlled accessory on industrial and building pipelines, normally consisting of valve body, opening and closing mechanism, and valve cover. Simple structure and reliable sealing.

Most fire valves are connected with clamps, making the complex valve installation and pipeline connection process simple, fast, and convenient. Taking pipeline connection technology a big step forward.

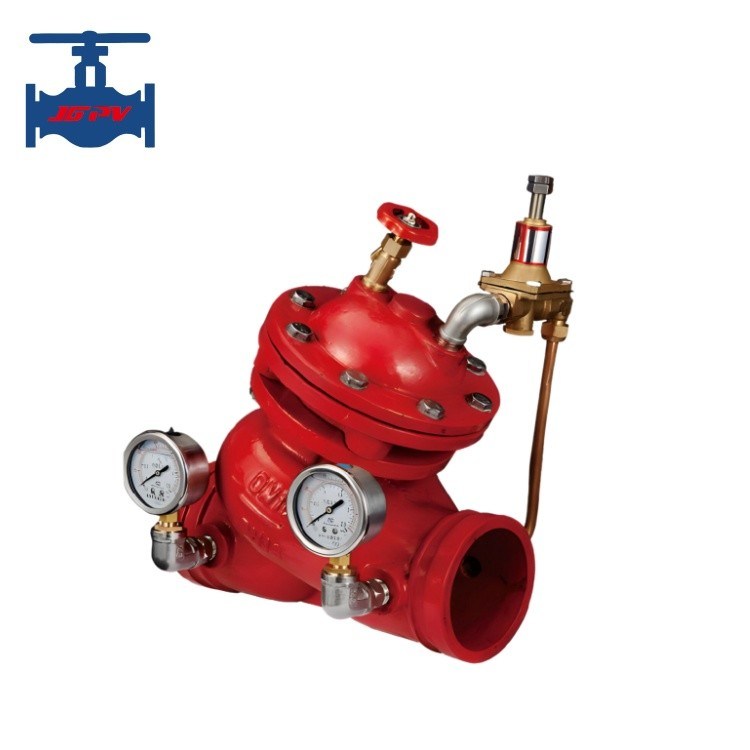

The YX8741X diaphragm adjustable pressure reducing and stabilizing valve is a hydraulic control valve, which is a valve for water pressure control. The hydraulic control valve consists of a main valve and its attached pipes, guide valves, needle valves, ball valves, and pressure gauges. According to different usage purposes, functions, and locations, it can be evolved into remote control float valves, pressure reducing valves, slow closing check valves, flow control valves, pressure relief valves, hydraulic electric control valves, water pump control valves, etc.

The YX8741X diaphragm adjustable pressure reducing and stabilizing valve is a valve used in a parallel water supply system for firefighting and domestic use, to adjust the direction of water supply. When a fire occurs, the fire department urgently needs a large amount of water, and immediately cut off domestic water to ensure sufficient fire water supply; When the pressure of the fire-fighting water decreases, the valve automatically opens in a normally open state, restoring domestic water supply. This valve eliminates the need for a separate fire-fighting water supply network in the system, greatly saving construction costs and water consumption.

Product technical parameter:

Product features:

1. Diaphragm Type Adjustable Pressure Reducing And Stabilizing Valve with high sensitivity, safety and reliability, easy debugging, and long service life.


2. Diaphragm type adjustable pressure reducing valve and stabilizing valve with stable pressure control. The pilot valve and main valve work continuously, and the downstream pressure changes continuously and steadily, with little influence from the inlet pressure.

2. A filter should be installed in front of the YX8741X diaphragm adjustable pressure reducing and stabilizing valve, and it should be easy to discharge pollutants.
