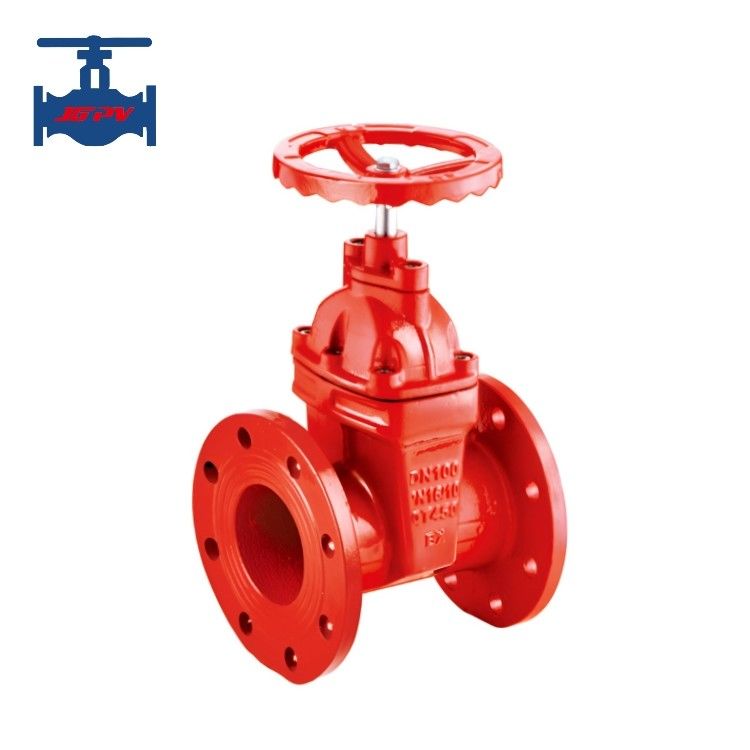

Non Rising Stem Resilient Seated Gate Valve Ductile Iron For Fire Fighting

Name: Non Rising Stem Resilient Seated Gate Valve Ductile Iron For Fire Fighting
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z45X-JGPV
Price: 664.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Z45X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD29.9/Set - USD1299.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Non Rising Stem Resilient Seated Gate Valve, Resilient Seated Gate Valve Ductile Iron, Fire Fighting Gate Valve Ductile Iron


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Fire Fighting Pipeline Valve	Purpose:	Water Pipeline Opening And Closing
Working Temperature:	Normal Temperature	Pressure Application:	Normal Pressure
Manufacturing Craft:	Casting	Body Material:	Ductile Iron
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Fire Fighting Pipeline Valve
Purpose:	Water Pipeline Opening And Closing
Working Temperature:	Normal Temperature
Pressure Application:	Normal Pressure
Manufacturing Craft:	Casting
Body Material:	Ductile Iron
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Non Rising Stem Resilient Seated Gate Valve Ductile Iron For Fire Fighting

Ductile Iron Non-Rising Stem Resilient Seated Gate Valve For Fire Fighting Use

Product introduction:

Resilient seat sealed gate valve is a type of soft sealed gate valve, which is an industrial valve of elastic gate valve. Its opening and closing component is the gate, and the direction of the gate's movement is perpendicular to the direction of the fluid. The gate valve can only be fully open and fully closed, and cannot be adjusted or throttled.

Soft sealed gate valve is a replacement product of traditional gate valve, which utilizes the compensation effect of elastic gate plate to produce slight deformation and achieve good sealing effect. This valve has significant advantages such as lightweight switch, reliable sealing, good elastic memory, and long service life. It can be widely used in fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy systems, etc.

Product technical paramters:

Diameter nominal DN (mm)		40～600
Pressure nominal PN (MPa)		1.0～2.5
Test standard	Strength test (MPa)	1.5 times of pressure nominal
Test standard	Sealing test (MPa)	1.1 times of pressure nominal
Main Components	Body	Ductile iron
	Bonnet	Ductile iron
	Stem	2Cr13
	O type ring	NBR
	Seal	NBR
	Gland	Ductile iron
	Disc	Ductile iron wrapped by NBR
Medium suitable		Water
Working temperature		0℃～80℃
Connection type		Flange

Product features:

1.High quality rubber is adopted for the internal and external encapsulation of valve, and the connection between rubber and valve is reliable and not easy to fall off;

2.As three "O"-shaped rings are designed on valve rod, the friction resistance of switch can be reduced and water leakage can be decreased significantly;

3.Corrosion resistance.
