Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: J41W-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD69.9/Set to USD3999.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Product Features: |
Industrial Valve |
Purpose: |
Flow Control |
Medium Type: |
Water, Steam, Oil And Corrosive Medium |
Working Temperature: |
Normal And High Temperature |
Pressure Nominal: |
Low, Medium And High Temperature |
Body Raw Material: |
WCB, CF8, CF8M, CF3, CF3M |
Seal Type: |
Hard Seal |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Guarantee: |
18 Months |
Name: |
Flanged Globe Valve |
Standard Or Non-standard: |
Standard |
Product Features: |
Industrial Valve |
Purpose: |
Flow Control |
Medium Type: |
Water, Steam, Oil And Corrosive Medium |
Working Temperature: |
Normal And High Temperature |
Pressure Nominal: |
Low, Medium And High Temperature |
Body Raw Material: |
WCB, CF8, CF8M, CF3, CF3M |
Seal Type: |
Hard Seal |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Guarantee: |
18 Months |
Name: |
Flanged Globe Valve |

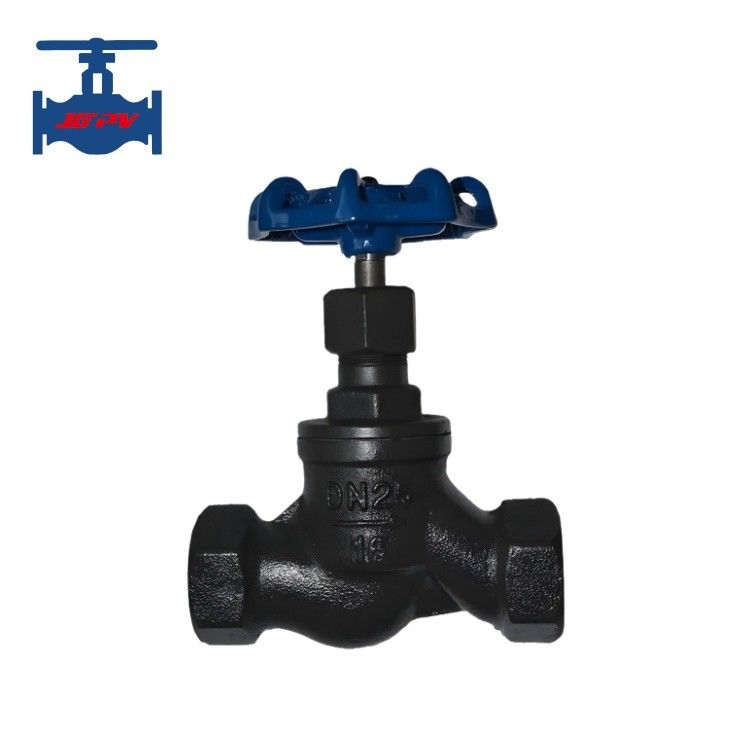

Cast Steel WCB Female Threaded Globe Valve
Product introduction:
Cast steel threaded globe valve is an important industrial valve widely used in petroleum, chemical, pharmaceutical, light industry and other fields. It is mainly used for regulating and controlling liquid conveying systems in industrial production processes,
The cast steel threaded globe valve is made of high-quality cast steel material, which has high strength, high corrosion resistance, and high sealing performance. The threaded connection method is simple and fast, capable of quick disassembly and installation, and convenient for maintenance and replacement. The valve stem nut is made of corrosion-resistant metal alloy, which will not produce impurities due to corrosion and affect valve performance. Adopting corrosion-resistant fluororubber sealing rings effectively prevents medium leakage and ensures safe use. The valve disc is equipped with a copper sealing ring, which can effectively prevent medium leakage and improve the sealing performance of the valve. Using high-strength stainless steel springs as elastic support elements, it can automatically adjust and balance the pressure on both sides of the packing box, ensuring that the packing box is in a compressed state and preventing medium leakage. Therefore, the cast steel wire buckle globe valve has become one of the indispensable and important components in industrial pipeline systems due to its excellent performance and wide application range.
Product parameter:
| Type Number: | J11H-JGPV | |
| Nominal Pressure | ||
| Nominal Diameter | 1/2" - 16" | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | CF8, CF8M, CF3, CF3M, | |
| Medium suitable: | Water, steam, oil and nitric acid etc corrosive medium | |
| Working temperature | 200≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Product features:
-It - has multiple safety protection functions, such as automatic shutdown, safety locking, etc., which can effectively protect the safety of pipeline systems.
-The exterior design is exquisite and meticulous, and can be well integrated into various industrial environments.
-Long service life, can effectively control fluid flow for a long time, and reduce fluid waste.
