Highlight:
Media: |
Water |
Manual Operation: |
Optional |
Purpose: |
Flow Combination And Diversion |
Product Features: |
Industrial Automation Control Valve |
End Type: |
Flanged |
Structure: |
Piston Type |
Leakage Class: |
Class IV, Class V, Class VI |
Trim Material: |
Stainless Steel, Brass, Bronze |
Application: |
Industrial, Residential |
Material: |
Stainless Steel |
Actuator Type: |
Handwheel |
End Connection: |
Threaded |
Sealing Performance: |
Sound Sealing Performance |
Shutoff Capability: |
Bubble-tight, Class VI, Or Class V |

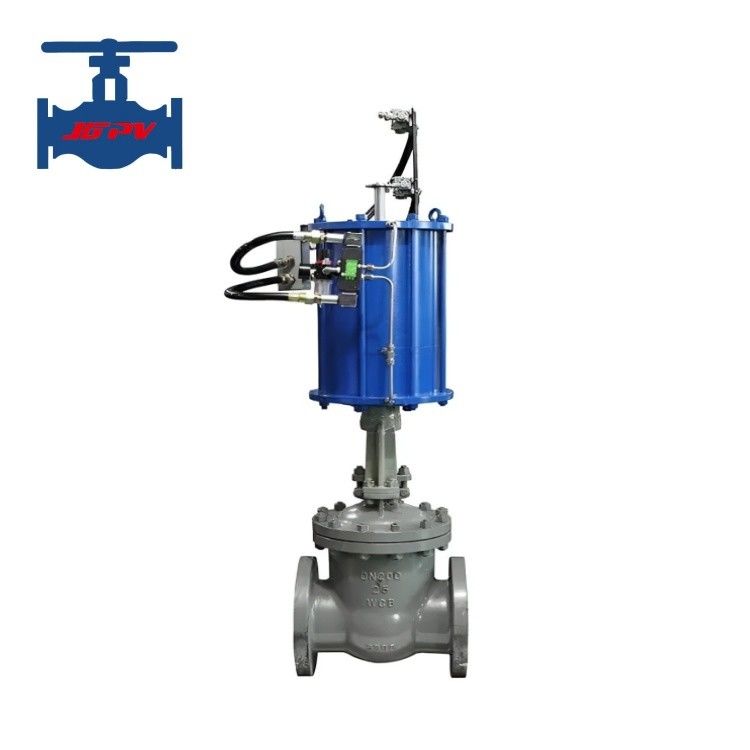

Highlight:The actuator of the pneumatic gate valve comes with both direct and reverse action capabilities, enabling
the valve to operate in either air-to-open or air-to-close modes.
product introduction:
The actuators of pneumatic gate valves have both direct and reverse acting functions, so the valve can be
operated in two modes: air-to-open and air-to-close. The gate valve adopts a unique metal-contact
structure, ensures reliable operation, and has extremely high shut-off performance, which is superior to
conventional shut-off valves.
Product technical paramter:
Product Features:
1. The actuator of the pneumatic gate valve has both direct and reverse acting functions, so the valve can
be operated in two modes: air-to-open and air-to-close. The gate valve adopts a unique metal-contact
structure, ensuring reliable operation and extremely high shut-off performance, which is superior to
conventional shut-off valves. The allowable leakage rate reaches 10⁻⁸ × KV. It has a wide range of
applications, with temperatures ranging from -196°C to 500°C, and pipe diameters as small as 40mm and
as large as 600mm.
The valve seats are available in three types: parallel, 60° V-notch, and 90° V-notch, adapting to the needs
of different application scenarios.
2. The valve body can be insulated with a jacket form, which is used in occasions where the medium is
prone to blockage, condensation, or coking after cooling.
