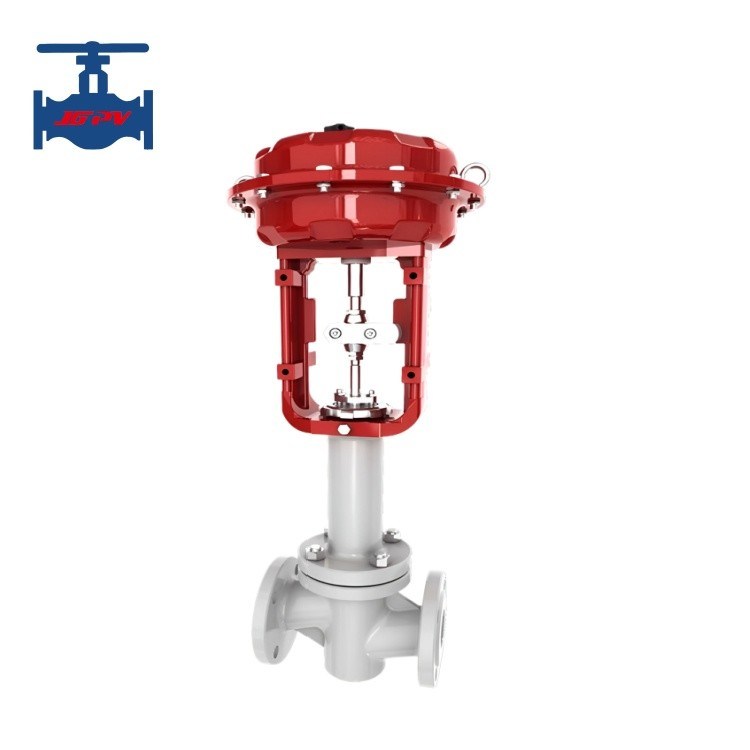

Cast Steel ASTM A216-WCB Pneumatic Control Valve Fluorine Lined Regulating And Control Valve

Name: Cast Steel ASTM A216-WCB Pneumatic Control Valve Fluorine Lined Regulating And Control Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: L202301-JGPV
Price: 6,199.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: L202301-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD499/Set to USD11899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: Two weeks

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Cast Steel Pneumatic Control Valve, A216-WCB Pneumatic Control Valve


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Automation Control Valve	Purpose:	Flow Regulation
Structure:	Diaphragm	Manufacturing Craft:	Casting
Port Size:	3/4" - 8"	Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Automation Control Valve
Purpose:	Flow Regulation
Structure:	Diaphragm
Manufacturing Craft:	Casting
Port Size:	3/4" - 8"
Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Cast Steel ASTM A216-WCB Pneumatic Control Valve Fluorine Lined Regulating And Control Valve

Cast Steel Astm A216-Wcb Pneumatic Fluorine Lined Regulating And Control Valve

Product introduction:

The L202301 series straight stroke fluorine lined regulating and control valve adopts a fluorine lined structure for both the valve body and internal components, effectively blocking the corrosion of corrosive media on all metal materials in the valve body. The inner cavity of the metal valve body is processed in a toothed manner, allowing the lining material to fully bond with the metal, thereby increasing the service life and performance of the lining material. The valve stem seal adopts a combination of PTFE bellow pipe seal and V-shaped PTFE packing, completely eliminating the leakage of medium from the valve stem outward. The unbalanced fully lined fluorine control valve is particularly suitable for the use of highly corrosive media under low pressure and normal temperature conditions.

Product technical parameter:

Model number		L202304
Pressure nominal		PN16, Class 150
Port size		3/4” - 8”
Test pressure (strength) MPa		1.5 times of pressure nominal
Test pressure (Sealing) MPa		1.1 times of pressure nominal
Main parts and raw material	Body	ASTM A216-WCB + PTFE/PFA
	Bonnet	ASTM A216-WCB + PTFE/PFA
	Disc	F304 + PTFE/PFA
	Seat	PTFE/PFA
	Stem	F304 + PTFE/PFA
	Cage	CF8, CF8M
	Bellows	PTFE/PFA
Body type		Direct through type
Bonnet type		Bellow sealed extension type
Working temperature		-45～150℃
Stem sealing type		Standard packing type and bellow seals type
Leakage rate		Class V, Class VI
Flow characteristics		Equal percentage and linear type
Adjusting rate		50:1
Connection		Flange, weldable type
Operation method		Pneumatic, electric, Electro-hydraulic actuator etc.

Product features:

1. Fluorine lined regulating valve is a type of regulating valve with a secondary permeation structure, which is composed of a metal or plastic skeleton and fluorine lined materials inside. Fluorine lining material is a fluoroplastic material with corrosion resistance, which has excellent acid resistance, alkali resistance, and high temperature resistance. Generally speaking, fluorine lined regulating valves can withstand temperatures up to 200 degrees, and even higher temperature mediums.

2. Fluorine lined regulating valves have high temperature resistance, corrosion resistance, high precision, stability, and long service life. Therefore, it has a wide range of applications in fluid control fields such as chemical, petroleum, and metallurgy.
