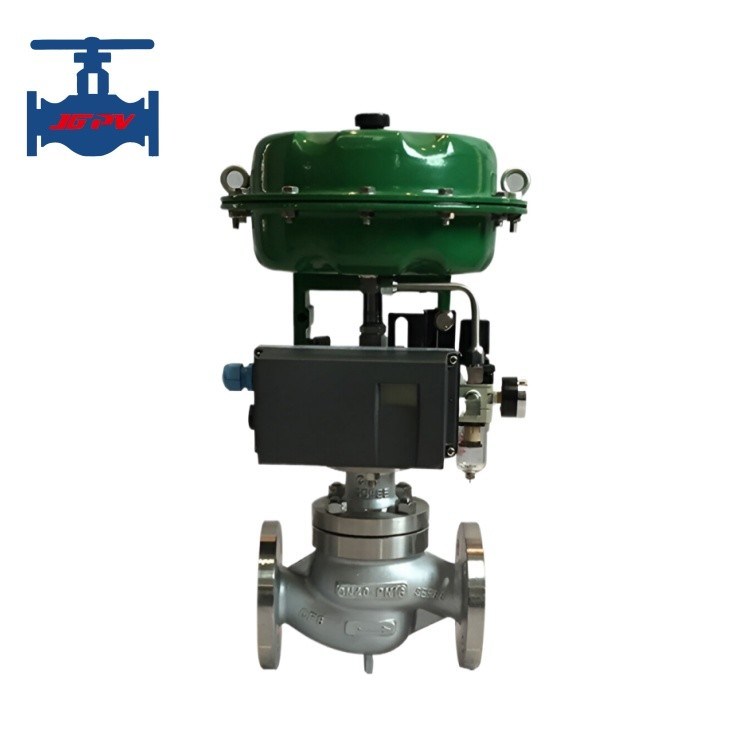

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Multi Spring Actuator Pneumatic Control Valve, Top Guide Structure Diaphragm Proportional Valve, S-shaped Fluid Channel Regulating Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

Pneumatic Control Valve, Hot Oil Steam Diaphragm Proportional Valve

Pneumatic control valve, hot oil steam diaphragm proportional valve

Product Introduction

The pneumatic diaphragm regulating valve consists of a multi spring pneumatic actuator and a regulating valve body. Adopting a top guide structure, it has the advantages of compact structure, light weight, sensitive action, S-shaped fluid channel, low pressure drop loss, large valve capacity, precise flow characteristics, and easy disassembly and assembly.

Widely used for precise control of process parameters such as gas and liquid media to maintain pressure, flow rate, temperature, and liquid level at given values. Especially suitable for situations where the allowable leakage is small and the pressure difference before and after the valve is not significant.

Technical Parameters

Parameter	Value
Basic deviation	+/-1.0%
Leakage rate	5x10-3 rated capacity
Return difference rated	1.0%
Rated flow coefficient	+/-10%
Dead zone	1.0%
Inherent flow characteristics	Slope +/-30%

Product Features

Adopting a balanced valve core structure, the axial unbalanced force is small, the allowable pressure difference is large, and the stability is good.
The sleeve has strong interchangeability, easy disassembly and assembly.
The all metal valve core structure achieves a soft sealing structure with IV level leakage and VI level leakage.
The valve body is designed according to the principles of fluid mechanics as an equal cross-section low flow resistance channel, with an inherent adjustable ratio of 50 and a 30% increase in rated flow coefficient.
The actuator adopts a multi spring structure, reducing the height by 30%. Reduce weight by 30%.
