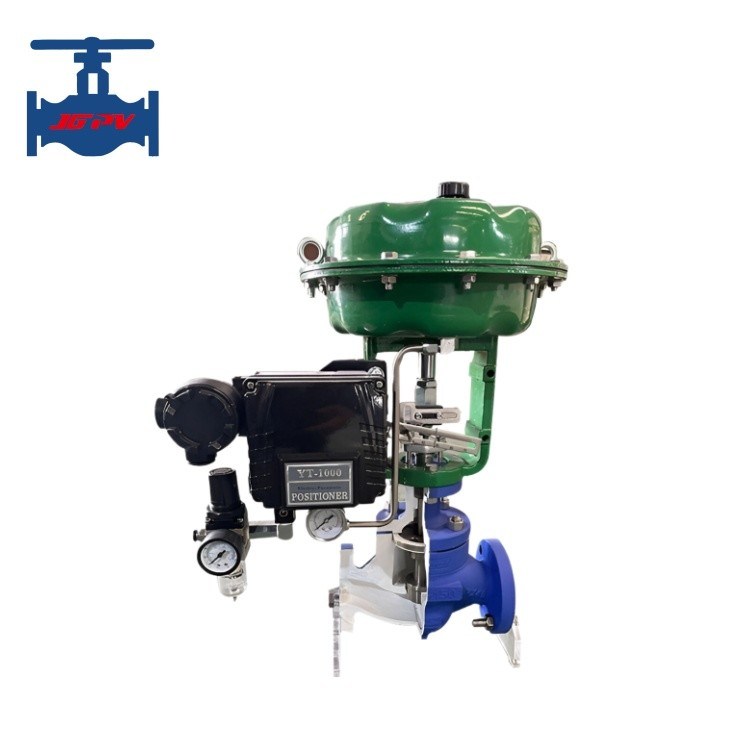

Pneumatic Control Valve with Diaphragm Structure for High Regulation Accuracy and 18 Months Warranty

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Diaphragm Structure Pneumatic Control Valve, High Regulation Accuracy Diaphragm Proportional Valve, 18 Months Warranty Regulating Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Pneumatic Control Valve with Diaphragm Structure for High Regulation Accuracy and 18 Months Warranty

Pneumatic Control Valve, Hot Oil Steam Diaphragm Proportional Valve

Product Overview

Pneumatic diaphragm regulating valve is a widely used regulating equipment in the field of industrial automation, which has the advantages of compact structure, high regulating accuracy, easy operation, and good stability. It uses compressed air or nitrogen gas as a power source to drive the opening and closing of the diaphragm regulating valve, achieving precise control of parameters such as flow rate and pressure of the fluid medium.

Technical Specifications

Parameter	Value
Basic Deviation	+/-1.0%
Leakage Rate	5x10-3 rated capacity
Return Difference Rated	1.0%
Rated Flow Coefficient	+/-10%
Dead Zone	1.0%
Inherent Flow Characteristics	Slope +/-30%

Key Features

Diaphragm Structure: The diaphragm regulating valve adopts a diaphragm structure, which separates the valve body from the actuator, achieving the sealing and stability of the valve. At the same time, the diaphragm can effectively prevent corrosion and wear of the actuator by the fluid medium, improving the durability of the valve.
High Regulation Accuracy: Pneumatic diaphragm regulating valves have high regulation accuracy, which can achieve precise control of fluid media. By changing the magnitude of gas pressure, precise adjustment of valve opening can be achieved, thereby achieving precise control of parameters such as flow rate and pressure of fluid media.
Easy Operation: The pneumatic diaphragm regulating valve is easy to operate, and the valve opening can be adjusted by controlling the pressure of compressed air or nitrogen. At the same time, the valve also has a manual adjustment function, which can be manually operated when automatic adjustment fails.
Excellent Stability: Pneumatic diaphragm regulating valves have good stability and can maintain stable performance under various working conditions. At the same time, the valve also has overload protection function, which can automatically close the valve when overloaded, protecting the equipment from damage.

Product Gallery
