Highlight:
Media: |
Water |
Body Style: |
Straight Through |
Elastic Memory: |
Excellent Elastic Memory |
Shutoff Capability: |
Bubble-tight, Class VI, Or Class V |
Sealing Performance: |
Sound Sealing Performance |
Valve Type: |
Gate Valve |
Seat Material: |
PTFE |
Flow Characteristic: |
Linear |
Actuation Type: |
Manual |
End Connections: |
Female X Female |
Leakage Class: |
Class IV, Class V, Class VI |
Seal Material: |
PTFE, Viton, EPDM |

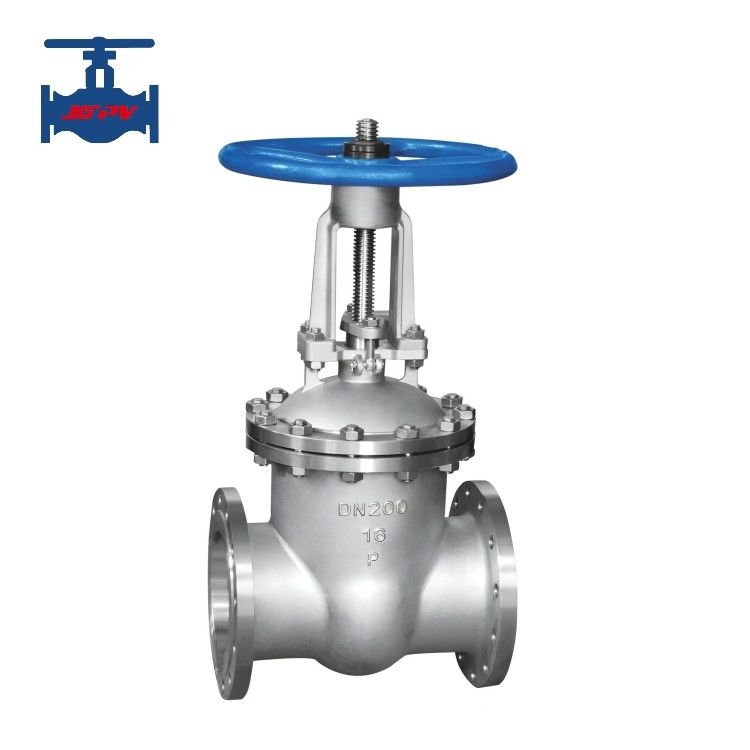

Highlight: Stainless Steel Flanged Gate Valve
Product Introduction:
The Z41W - 40P gate valve is a stainless steel flanged gate valve mainly used for weakly corrosive media. With a pressure
rating of 4.0MPa, it is suitable for various industrial pipeline systems. The opening and closing component of the gate valve
is the gate plate, whose movement direction is perpendicular to the fluid direction. It can only be fully opened or fully closed,
and cannot be used for regulation or throttling. The gate plate has two sealing surfaces forming a wedge shape, and the
wedge angle is usually 50 degrees. The gate plate of the wedge - type gate valve can be made rigid or elastic to adapt to
different process requirements. This kind of gate valve is widely used in various systems such as petroleum, chemical
industry, metallurgy, and pharmacy, especially in occasions where heat preservation and prevention of medium crystallization
are required. It can transport high - viscosity media that will solidify at room temperature, ensuring the normal operation of the
system and the stable transportation of the media.
Product Technical Parameters:
|
Type Number:
|
Z41W-40P
|
|
Nominal Diameter DN(mm)
|
15～250
|
|
Nominal Pressure PN(MPa)
|
4.0
|
|
Test pressure (MPa)
|
Strength (water)
|
6.0
|
|
Closure (water)
|
4.4
|
|
Main Parts
|
Valve body
|
Stainless steel CF8
|
|
Valve bonnet
|
Stainless steel CF8
|
|
DISC
|
Stainless steel CF8
|
|
Hand wheel
|
Stainless steel CF8
|
|
Yoke nut
|
Brass
|
|
Medium suitable:
|
Water, steam, oil and nitric acid etc corrosive medium
|
|
Working temperature
|
200≤℃
|
|
Connection type
|
Flange
|
Product Functions:
1. Small and light, easy to disassemble and repair, can be installed in any location.
2. Simple structure, compact, 90°rotation start quickly.
3. flow characteristics tend to be straight, good regulation performance.
4. opening and closing test times up to tens of thousands of times, long life.
5. The sealing element can be replaced, the sealing is reliable to achieve two-way sealing, and the leakage of gas test is zero.
6. sealing material aging, corrosion resistance, can be applied to a variety of media.
7. Electric actuator make it more flexible operation,labor saving and convenience.
