Wafer Type Pneumatic Butterfly Valve

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 14 days

Get Best Price

Product Details

Product Description

Highlight:

Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Working Temperature::	Normal Temperature And High Temperature	Sealing Performance::	Sealing
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Working Temperature::	Normal Temperature And High Temperature
Sealing Performance::	Sealing
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

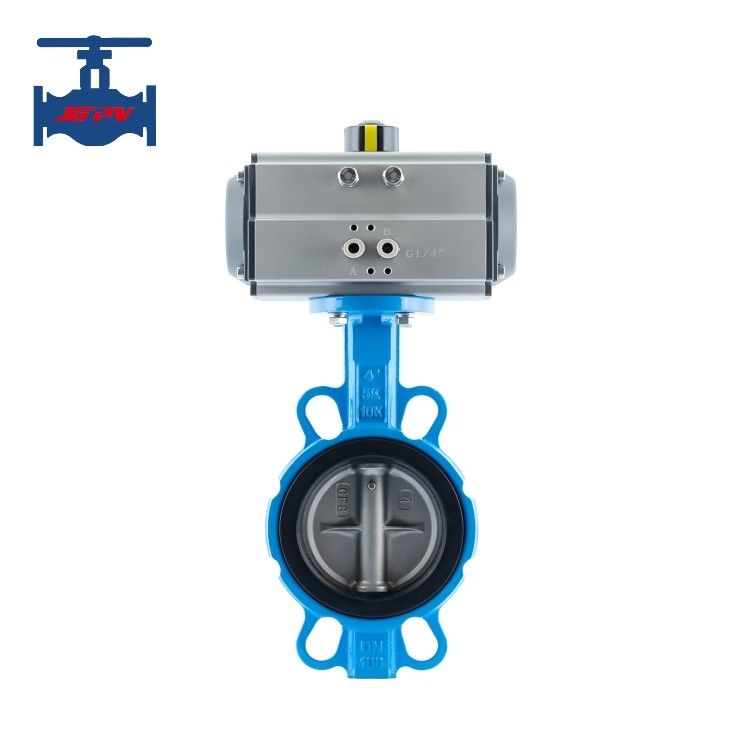

Wafer Type Pneumatic Butterfly Valve

Highlight: Wafer Type Pneumatic Butterfly Valve

Product introduction:

The pneumatic soft-sealed butterfly valve is composed of a pneumatic actuator, a rubber-sealed butterfly valve, and a carbon steel or stainless steel valve disc and stem. The wafer-type pneumatic butterfly valve is suitable for applications with a temperature ≤120℃, such as in water supply/drainage and gas pipelines for industries like food, medicine, chemical, petroleum, power, light textile, and papermaking, serving to regulate flow and intercept media.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

1.Novel, reasonable and unique design, light weight, quick opening and closing.
2.Low operating torque, easy and labor-saving operation.
3.Can be installed in any position for easy maintenance.
4.Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
5.Sealing materials feature aging resistance, corrosion resistance, and a long service life.
