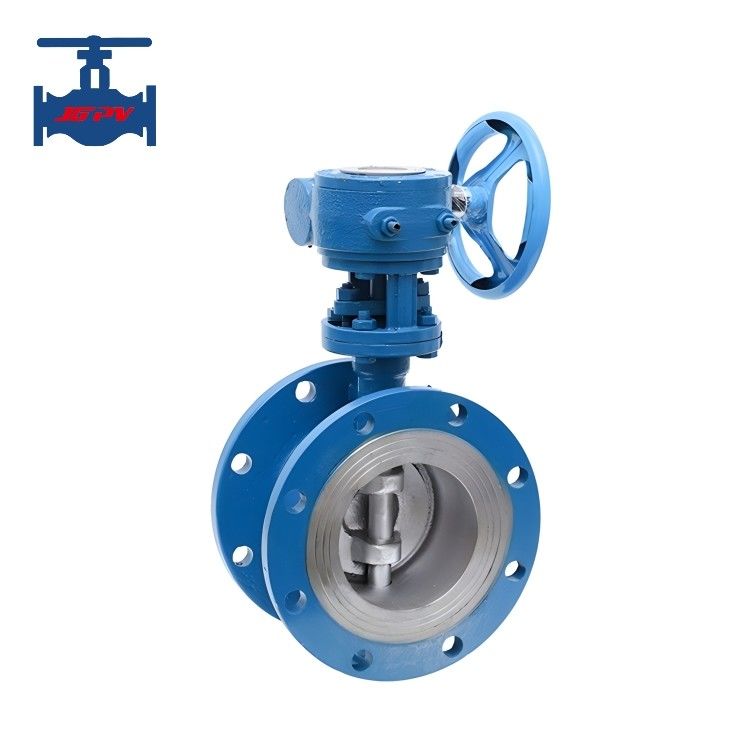

Cast Steel WCB Flanged Butterfly Valve Triple Offset For Water / Steam And Oil Use

Name: Cast Steel WCB Flanged Butterfly Valve Triple Offset For Water / Steam And Oil Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: D343H-16C
Price: 10,043.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D343H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD89.9/PC-USD19999/PC

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                WCB Butterfly Valve Flanged, Flanged Butterfly Valve Triple Offset, Cast Steel Butterfly Valve Triple Offset


Standard Or Non-standard:	Standard	Application:	General
Medium Type:	Water, Steam And Oil	Pressure Application:	Low Pressure And Medium Pressure
Product Feature:	Industrial Valve	Purpose:	Flow Control
Manufacturing Craft:	Casting	Material:	Stainless Steel 304 316
Port Size:	2"-32"	Quality Warranty:	18 Months
Name:	Triple Offset Butterfly Valve

Standard Or Non-standard:	Standard
Application:	General
Medium Type:	Water, Steam And Oil
Pressure Application:	Low Pressure And Medium Pressure
Product Feature:	Industrial Valve
Purpose:	Flow Control
Manufacturing Craft:	Casting
Material:	Stainless Steel 304 316
Port Size:	2"-32"
Quality Warranty:	18 Months
Name:	Triple Offset Butterfly Valve

Cast Steel WCB Flanged Butterfly Valve Triple Offset For Water / Steam And Oil Use

Cast Steel WCB Triple Offset Flanged Butterfly Valve For Water, Steam And Oil Use

Product introduction:

Triple eccentric butterfly valve with 3-d design, three dimensional design of principle of eccentricity, valve seat adopt hard and soft sealing compatible multi-layers structure, advanced technology and exquisite proceeding make the space of the sealing surface movement to achieve ideal, no friction, no interference with each other, together with the optimal allocation of sealing material, so that the butterfly valve with long service lifetime, energy-efficient features it sealing, corrosion resistance, high temperature resistance and wear resistance are the reliable guarantee.

Product specification:

Diameter nominal (DN)		50～1400mm
Pressure nominal (PN)		1.0～2.5MPa
Pressure test (MPa)	Strength test (Water)	1.5～3.75MPa
Pressure test (MPa)	Sealing test (Water)	1.1～2.75MPa
Main parts	Body	WCB
	Disc	WCB
	Stem	2Cr13
	Packing	PTFE, flexible graphite
	Sealing	Unidirectional and bidirectional
Working temperature		-29～425℃
Medium application		water, oil, steam
Connection way		Flange
Driven method		Lever, worm gear, pneumatic and electric actuators

Product features:

1. The small open torque, flexible, convenient and saving energy.

2. 3-d offset structure, make the butterfly plate is shut tight, reliable sealing performance, zero leakage.

3. High resistance to pressure, corrosion resistance, wear resistance, long service time.
