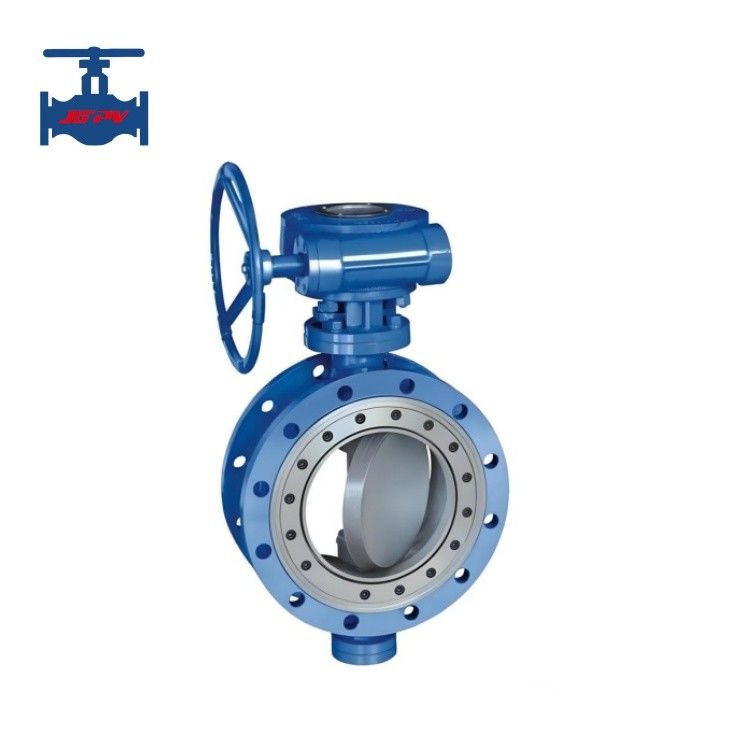

Tri-Eccentric Metal Hard-Sealed Butterfly Valve for Water Oil Steam

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Tri-eccentric butterfly valve for steam, Metal hard-sealed butterfly valve, Butterfly valve for water oil


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Tri-Eccentric Metal Hard-Sealed Butterfly Valve for Water Oil Steam

Tri-eccentric Metal Hard-Sealed Butterfly Valve

Highlight: Tri-eccentric metal hard-sealed butterfly valve

Product Attributes

Attribute	Value
Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Introduction

The Tri-eccentric metal hard-sealed butterfly valve features an integrated valve body and valve seat design, with the sealing surface overlay-welded using temperature-resistant and corrosion-resistant alloy materials. A multi-layer soft stacked sealing ring is fixed on the valve plate. Compared to traditional butterfly valves, this design offers superior high temperature resistance, effortless operation, and friction-free opening/closing. The sealing improves with increased torque during closing, enhancing performance and extending service life. Widely used in petroleum, chemical, metallurgical, and hydropower industries.

Technical Parameters

Parameter	Specification
Diameter nominal (DN)	50～1200mm
Pressure nominal (PN)	0.6～4.0MPa
Pressure test (MPa)	Strength test (Water): 0.9～6.0MPa Sealing test: 0.66～4.4MPa
Main parts	Body: Carbon steel, stainless steel, alloy steel Disc: Carbon steel, stainless steel, alloy steel Stem: 2Cr13 Packing: PTFE, flexible graphite Sealing: Stainless steel, PTFE, Hard alloy
Working temperature	-40～570℃
Medium application	Water, oil, steam, acid and alkali corrosive mediums
Connection way	Wafer and flange
Driven method	Lever, worm gear, pneumatic and electric actuators

Product Features

The tri-eccentric hard-sealed structure minimizes wear between valve seat and butterfly plate, with sealing that tightens as it closes.
Stainless steel sealing ring combines metal hard sealing with elastic sealing advantages, offering excellent performance in both low and high temperatures, plus corrosion resistance and long service life.
Butterfly plate sealing surface is overlay-welded with hard alloy for superior wear resistance and durability.
Large-size butterfly plates feature a truss structure for high strength, maximum flow area, and minimal flow resistance.
Available with bidirectional sealing functionality, installable in any orientation without medium flow direction restrictions.

Product Images
