Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: D343W-16P-25P
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD89.9/PC-USD19999/PC
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Name: |
Triple Offset Butterfly Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Medium Type: |
Water, Steam And Oil |
Pressure Application: |
Low Pressure And Medium Pressure |
Product Feature: |
Industrial Valve |
Purpose: |
Flow Control |
Manufacturing Craft: |
Casting |
Material: |
Stainless Steel 304 316 |
Port Size: |
2"-32" |
Quality Warranty: |
18 Months |
Name: |
Triple Offset Butterfly Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Medium Type: |
Water, Steam And Oil |
Pressure Application: |
Low Pressure And Medium Pressure |
Product Feature: |
Industrial Valve |
Purpose: |
Flow Control |
Manufacturing Craft: |
Casting |
Material: |
Stainless Steel 304 316 |
Port Size: |
2"-32" |
Quality Warranty: |
18 Months |

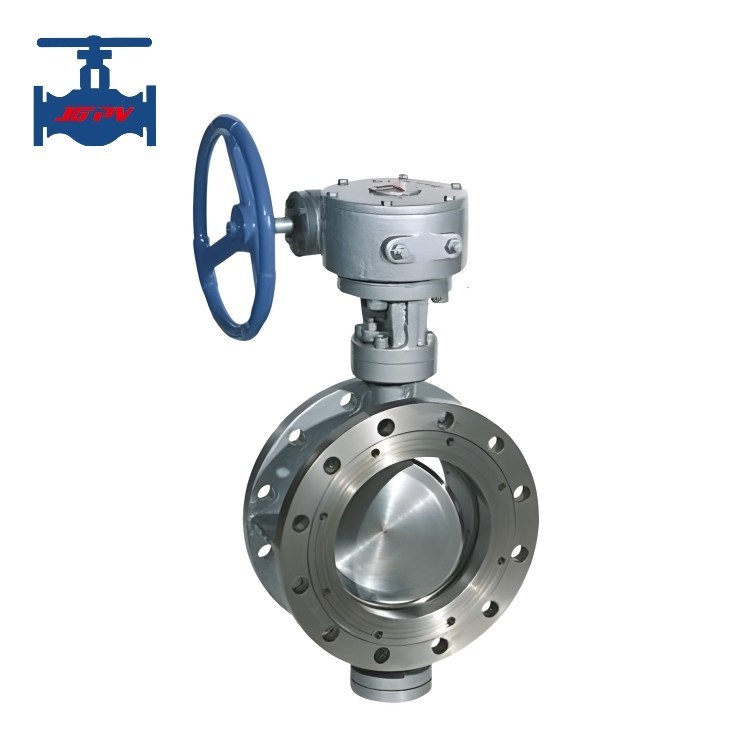

Stainless Steel 304 316 Cf8 Cf8m Triple Offset Flanged Gate Valve With High Performance
Product introduction:
Triple eccentric metal hrad seal butterfly valve product with long service lifetime, energy-efficient features, it is using the three dimensional design of principle of eccentricity, valve seat adopt hard and soft sealing compatible multi-layers structure, advanced technology, exquisite proceeding, the main components are body, disc, multi-level seat, stem, drive mechanism etc.
Triple eccentric metal hard seal butterfly valve is widely used in multi-level mediums with temperature up to 650C, in metallurgy, electric power, petrochemical industry fields, medium such as air, gas, water supply and drainage pipeline, for flow throttling and cut off function.
Triple eccentric butterfly valve with reliable sealing performance, It is the extension and development direction of general butterfly valves for applications in the medium pressure, medium temperature, and high temperature fields.
Triple eccentric butterfly valve with 3-d design, make the space of the sealing surface movement to achieve ideal, no friction, no interference with each other, together with the optimal allocation of sealing material, so that the butterfly valve sealing, corrosion resistance, high temperature resistance and wear resistance are the reliable guarantee.
Product specification:
| Diameter nominal (DN) | 50～1200mm | |
| Pressure nominal (PN) | 1.0～2.5MPa | |
| Pressure test (MPa) | Strength test (Water) | 1.5～3.75MPa |
| Sealing test (Water) | 1.1～2.75MPa | |
| Main parts | Body | Stainless steel, alloy steel |
| Disc | Stainless steel, alloy steel | |
| Stem | 2Cr13, stainless steel, alloy steel | |
| Packing | PTFE, flexible graphite | |
| Sealing | Stainless steel, PTFE, Hard alloy | |
| Working temperature | -40～570℃ | |
| Medium application | water, oil, steam, acid and alkali corrosive mediums | |
| Connection way | Flange | |
| Driven method |
Lever, worm gear, pneumatic and electric actuators |
|
Product features:
1. The small open torque, flexible, convenient and saving energy.
2. 3-d offset structure, make the butterfly plate is shut tight, reliable sealing performance, zero leakage.
3. High resistance to pressure, corrosion resistance, wear resistance, long service time.
