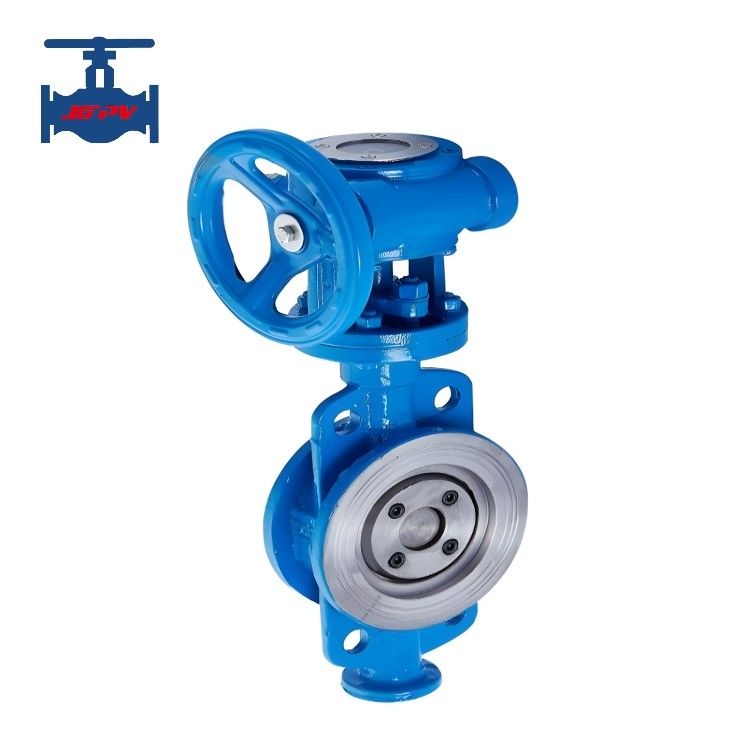

Cast Steel Hard Seal Wafer Butterfly Valve

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 daysNormal Pressure

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Cast Steel Hard Seal Wafer Butterfly Valve

Highlight: Cast Steel Hard Seal Wafer Butterfly Valve

Product introduction:

The butterfly valve, also known as a flap valve, is a type of regulating valve with a simple structure. It refers to a valve where the closing member (valve disc or butterfly disc) is a circular disc that rotates around the valve shaft to achieve opening and closing, suitable for on-off control of media in low-pressure pipelines.Butterfly valves can be used to control the flow of various types of fluids, including air, water, steam, various corrosive media, slurry, oils, liquid metals, and radioactive media. They primarily function as cut-off and throttling devices in pipelines. The opening/closing member of a butterfly valve is a circular butterfly disc that rotates around its own axis within the valve body to achieve the purpose of opening/closing or regulating.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

The butterfly valve features a simple structure, small size, light weight, low material consumption, compact installation dimensions, quick opening/closing with 90° reciprocating rotation, and low driving torque. It is used to cut off, connect, and regulate media in pipelines, offering excellent fluid control characteristics and tight sealing performance when closed.
Butterfly valves can transport slurry with minimal liquid accumulation at pipe openings. They achieve good sealing under low pressure and have superior regulating performance.
The streamlined design of the butterfly disc minimizes fluid resistance loss, making it an energy-efficient product.
The valve stem adopts a through-rod structure, quenched and tempered to provide good comprehensive mechanical properties, corrosion resistance, and anti-galling performance. During opening/closing, the stem only rotates without lifting, preventing damage to the stem packing and ensuring reliable sealing. Fixed to the butterfly disc with taper pins, the extended end is designed to prevent ejection—avoiding stem protrusion in case of unexpected fracture at the stem-disc connection.
Connection types include flanged, wafer, butt-welded, and lug wafer connections.
Actuation forms include manual, worm gear, electric, pneumatic, hydraulic, and electro-hydraulic 联动 (electro-hydraulic linkage) actuators, enabling remote control and automated operation.
