Worm Gear Flanged Butterfly Valve

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

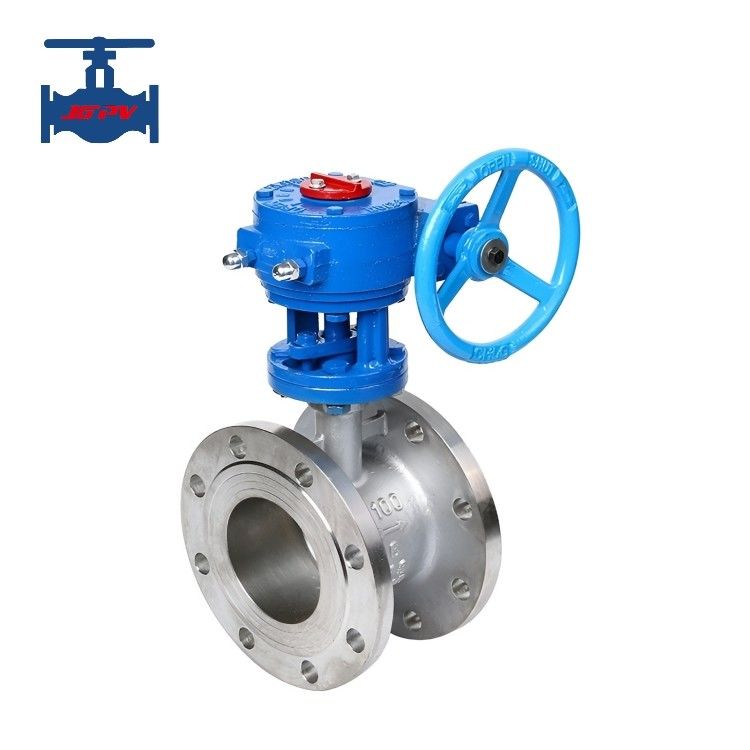

Worm Gear Flanged Butterfly Valve

Highlight: Worm Gear Flanged Butterfly Valve

Product introduction:

It is installed in the diameter direction of the pipeline. Inside the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis at an angle between 0° and 90°. When rotated to 90°, the valve is in a fully open state. This valve is generally installed horizontally.

The handle butterfly valve features a simple structure, small size, and light weight, composed of only a few components. It can be quickly opened or closed with a 90° rotation for easy operation, while having excellent fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance for the medium flowing through the valve body. Therefore, the pressure drop generated by this valve is very small, resulting in good flow control characteristics.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

Novel and reasonable design, unique structure, light weight, and quick opening/closing.
Low operating torque, convenient operation, labor-saving and flexible.
Can be installed in any position for easy maintenance.
Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
Sealing materials feature aging resistance, corrosion resistance, and a long service life.
