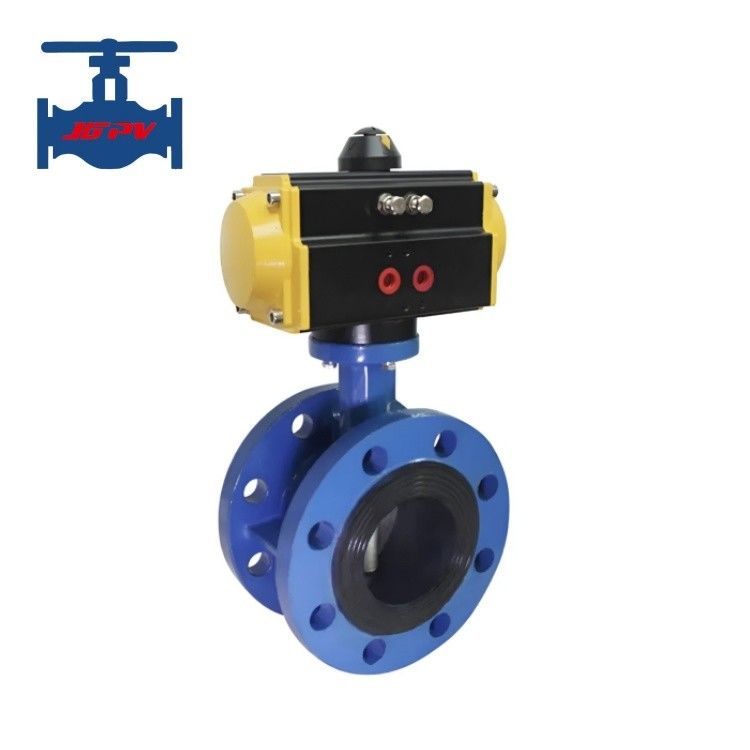

Pneumatic Soft-sealed Flanged Butterfly Valve

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Application::	General	Medium Type::	Water, Steam And Oil Etc. Mounting Type: Direct Mount
Mounting Type:	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc. Mounting Type: Direct Mount
Mounting Type:	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Pneumatic Soft-sealed Flanged Butterfly Valve

Highlight: Pneumatic Soft-sealed Flanged Butterfly Valve

Product introduction:

The pneumatic flanged butterfly valve is a key equipment widely used in the field of industrial fluid control, suitable for working conditions where the medium temperature does not exceed 120°C. With its flanged connection structure, the valve ensures a stable docking with the pipeline system, featuring strong sealing performance to effectively prevent medium leakage. In the light textile industry, it can accurately regulate the steam flow in dyeing and finishing processes; in the papermaking industry, it is used to control the water flow and (liquid medicine) delivery in the pulping process; in the food and pharmaceutical fields, its non-toxic and environmentally friendly sealing materials meet hygienic standards to ensure product safety; and in gas transmission pipelines, whether for natural gas transmission or factory compressed air systems, it can achieve efficient flow regulation and medium interception.

In terms of performance characteristics, the pneumatic flanged butterfly valve has significant advantages. Its streamlined valve cavity design greatly reduces fluid resistance. Especially for medium and large diameter specifications, the effective flow area when the valve is fully open is nearly the inner diameter of the pipeline, which can minimize pressure loss and improve transmission efficiency. In terms of power drive, the pneumatic actuator equipped with the valve is highly responsive. By driving the disc to rotate 90°, the opening and closing actions can be completed within a few seconds. Compared with traditional valves, it is more rapid and labor-saving in operation. In addition, by adjusting the pressure of the pneumatic device or installing a positioner, precise control of the medium flow can be achieved to meet the refined operation requirements of different working conditions.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

Novel and reasonable design, unique structure, light weight, and rapid opening/closing.
Low operating torque, convenient operation, labor-saving and flexible.
Can be installed in any position for easy maintenance.
Sealing components are replaceable, ensuring reliable bidirectional zero-leakage sealing performance.
Sealing materials feature aging resistance, corrosion resistance, and a long service life.
