Application:: |
General |
Medium Type:: |
Water, Steam And Oil Etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow Way:: |
Two Way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

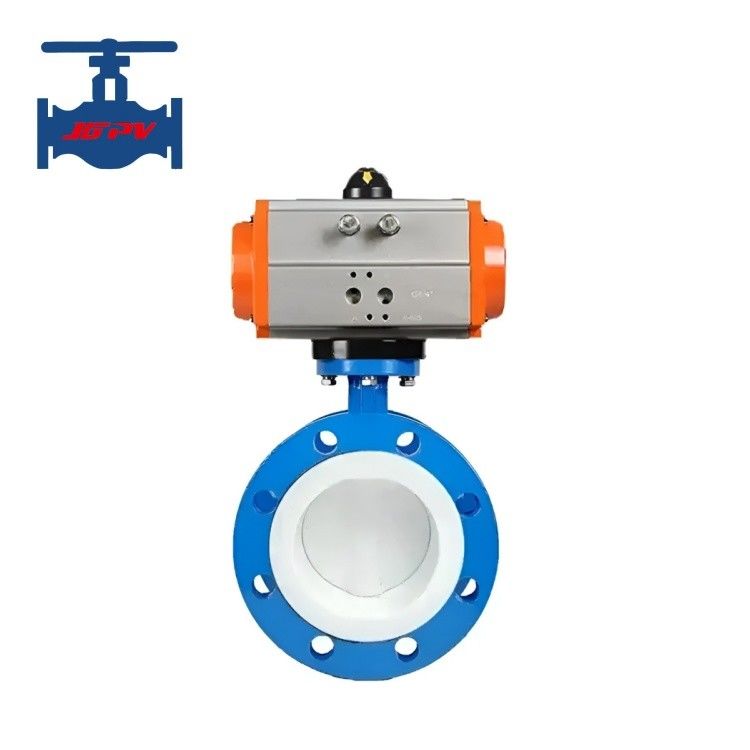

Highlight: Soft-sealed Pneumatic Butterfly Valve
Product introduction:
Soft-sealed butterfly valves, as components used to achieve on-off control and flow regulation in pipeline systems, have been widely applied in numerous fields such as petroleum, chemical, metallurgy, hydropower, etc. In existing butterfly valve technologies, most sealing types adopt structural designs with sealing materials like rubber and polytetrafluoroethylene. Due to structural limitations, they are unsuitable for industries requiring high-temperature resistance, high-pressure resistance, corrosion resistance, and wear resistance.
A relatively advanced type is the triple-eccentric metal hard-sealed butterfly valve, where the valve body and seat are integrated components. The sealing surface of the valve seat is overlaid with temperature-resistant and corrosion-resistant alloy materials through surfacing welding. Multi-layer soft stacked sealing rings are fixed on the valve disc. Compared with traditional butterfly valves, this type offers advantages such as high-temperature resistance, lightweight operation, frictionless opening/closing, sealing compensation through increased torque of the transmission mechanism during closure, improved sealing performance, and extended service life.
Product technical parameters:
|
Nominal Diameter DN (mm)
|
50~1200
|
|
Nominal Pressure PN (MPa)
|
0.6～4.0
|
|
Test Pressure (MPa)
|
Strength (water)
|
0.9～6.0
|
|
Enclose (Water)
|
0.66～4.4
|
|
Main Components
|
Body
|
Stainless steel/Carbon steel/alloy steel
|
|
valve plate
|
Stainless steel/Carbon steel/alloy steel
|
|
valve stem
|
2Cr13 stainless steel
|
|
Packing
|
PTFE, flexible graphite
|
|
Shaft
|
Stainless steel, PTFE, cemented carbide
|
|
Working temperature
|
-40～570℃
|
|
Medium suitable
|
Water, oil, steam, acid and alkali and other corrosive media
|
Product features:
1. Double-eccentric design with dynamic self-tightening seal: Sealing pressure increases as the valve closes, ensuring
reliability under high-pressure and high-velocity media.
2. Stainless steel combined with nitrile oil-resistant rubber for sealing: High-strength, corrosion-resistant, oil-resistant,
anti-aging, and long-lasting.
3. Rubber sealing ring can be installed on the valve body or disc, adapting to different media characteristics for versatile
applications.
4. Frame-structured disc balances strength and lightness: Large flow passage reduces resistance, saves energy, and
enhances flow efficiency.
5. Overall baked enamel coating for corrosion protection; quick-change sealing seat enables easy adaptation to various
media.
6. Bidirectional sealing allows installation without restrictions on flow direction or orientation, ideal for flexible installation in
complex pipe networks.
7. Ergonomic mechanical design reduces operating torque by over 30%, ensuring precise and smooth operation for both manual and automated control, with high maintenance efficiency.
