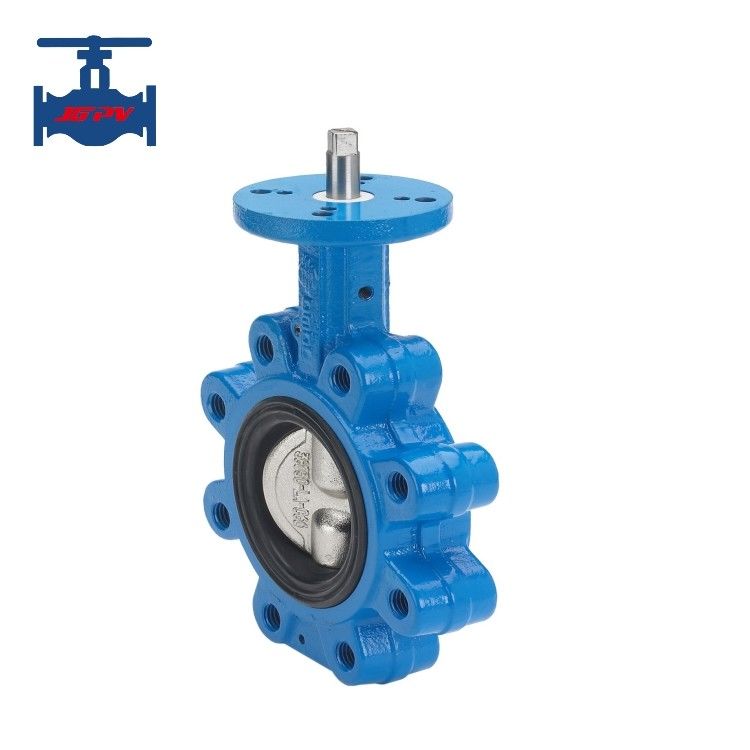

Highlight: Wafer Butterfly Valve
Product introduction:
The wafer butterfly valve is stably connected between two pipeline flanges via double bolts, featuring a (streamlined)
structure, compact design, and light weight, composed of a few core components. It only requires a 90° rotation for quick
opening and closing, with a simple and efficient operation process, while having excellent fluid regulation performance. In
the fully open position, the thickness of the butterfly disc is the only obstruction for the medium flowing through the valve
body, resulting in extremely low pressure drop, ensuring its superior flow control effect. This butterfly valve provides two
sealing types: spring seal and metal seal. The sealing ring of the elastic seal valve can be installed on the valve body or
attached to the edge of the butterfly disc, adapting to different working condition requirements.
Product technical parameters:
|
Nominal Diameter DN (mm)
|
40~600
|
|
Nominal Pressure PN (MPa)
|
1.6
|
|
Test Pressure (MPa)
|
Strength (water)
|
2.4
|
|
Enclose (Water)
|
1.76
|
|
Main Components
|
Valve body
|
Ductile iron
|
|
Disc
|
QT450-10
|
|
Seat
|
NBR, EPDM
|
|
Axle
|
20Cr13
|
|
Working temperature
|
≤80℃
|
|
Medium suitable
|
Water and oil
|
|
Connection
|
Wafer type
|
|
Driven method
|
Lever operation
|
Product features:
1. Design according with API 609/EN 593.
2. Tightness in both ways, lug type with threaded ears.
3. Flexible sleeve adapted to the shape of the body assures low operating torque. High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low and regular torque.
4. Mounting flange according to ISO 5211.
5. Small operating torque, labor-saving dexterity, easy to operate,
6. Can be installed in any position, easy maintenance.
7. The sealing parts can be replaced, and the sealing performance is reliable, reaching the two-way sealing zero leakage.
