Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

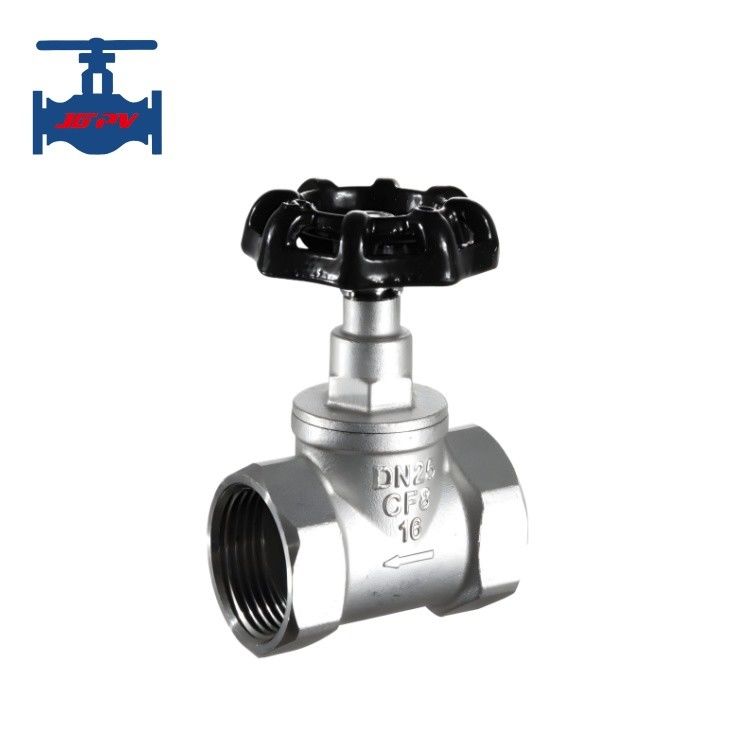

Female Threaded Globe Valve

Highlight: Female Threaded Globe Valve

Product introduction:

J11W female threaded globe valve is typically used in occasions with strict sealing requirements. In addition to controlling gas,

liquid and steam media, it is also suitable for controlling sewage and media containing fibrous impurities. The product has many

characteristics such as compact structure, exquisite appearance, excellent performance and convenient use. It is suitable for air,

steam, water, gas, oil, corrosive media, etc., and is widely used in petroleum, chemical, metallurgy, light industry, papermaking,

refrigeration and other working fields.

Product technical parameters:

Model	J41H-16C, J41W-16P
Test pressure	2.4MPa (24kgf/cm2)
Working pressure	≤1.6MPa (16kgf/cm2)
Working temperature	≤200℃
Medium application	Water, steam, oil and weak corrosive mediums
Connection way	Female Thread
Driven method	Manual, and bevel gear, pneumatic and electric actuator optional
Usage range	Automation pipeline control in power, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc.

Product features:

Structural Advantages: Globe valves feature a simpler design than gate valves, with a single sealing surface that facilitates manufacturing and maintenance. They are suitable for a wide pressure range. When fully closed, the disc travel is shorter, resulting in a lower overall height.
Operational Characteristics: The opening/closing height is approximately 1/4 of the seat diameter, ensuring reliable shut-off and easy flow regulation.
Longevity Benefits: When open, the sealing surfaces of the seat and disc are separated, minimizing wear and extending seal life.
Usage Limitations: Unidirectional flow requires directional installation. Longer than gate valves, they have higher torque requirements, making rapid operation challenging. The tortuous flow path increases resistance and energy loss.
Mechanical Requirements: When enters from below the disc, operation must overcome stem-packing friction and pressure. Higher closing forces necessitate a larger stem diameter to prevent bending.
