ISO9001 ISO14001 Certified Manual Copper Ball Valve with Inner and Outer Wires for Water Oil and Steam

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 Copper Ball Valve, ISO14001 Copper Ball Valve, Manual Copper Ball Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

ISO9001 ISO14001 Certified Manual Copper Ball Valve with Inner and Outer Wires for Water Oil and Steam

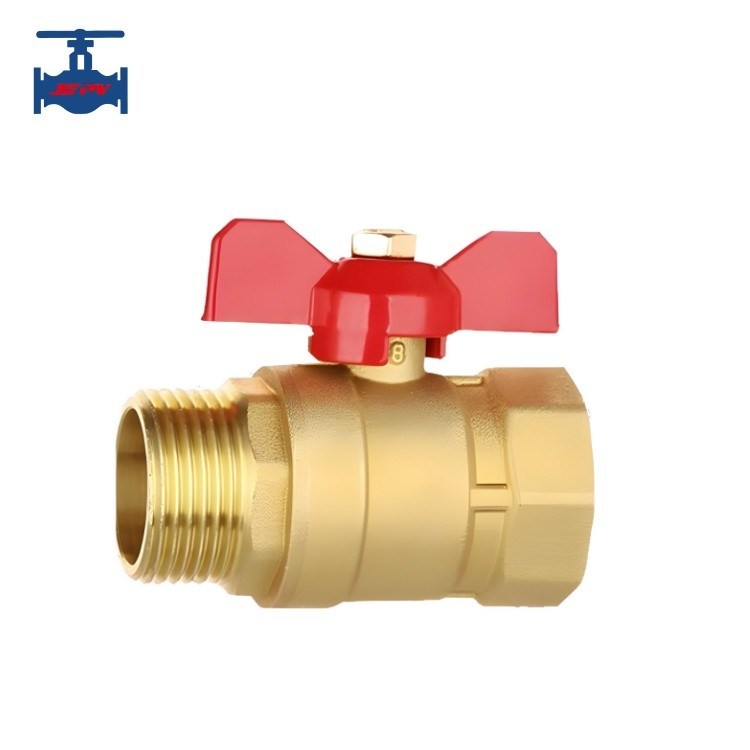

Manual Copper Ball Valve with Inner and Outer Wires

Manual copper ball valve with inner and outer wires

Product Introduction

Two piece internal thread ball valve is a common type of valve, which consists of valve body, valve ball, valve stem, valve seat and other components. Among them, the valve body is composed of two hemispheres connected by threads in the middle. The valve ball is spherical and can rotate inside the valve body to achieve switch control. The valve stem is a component that connects the valve ball and the handle, and controls the opening and closing of the valve ball by rotating the handle. The valve seat is the sealing gasket of the valve ball, which can ensure the sealing performance of the valve.

The characteristics of this valve are simple structure, good sealing, easy operation, and long service life.

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

The fluid resistance is small, and its resistance coefficient is equal to that of a pipe segment of the same length.
Simple structure, small size, and light weight.
Tight and reliable, plastic is widely used as the sealing surface material for ball valves with good sealing performance, and it has also been widely used in vacuum systems.
Easy to operate, quick opening and closing, only need to rotate from fully open to fully closed; Easy to control from a distance.
