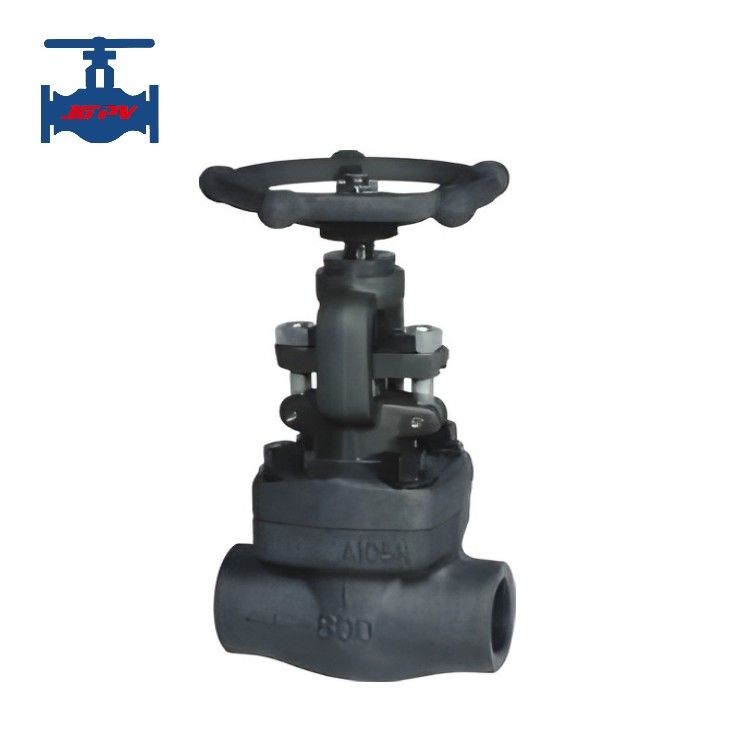

800lb Cast Steel A105 Forged Gate Valve Threaded And Weldable ANSI Standard

Name: 800lb Cast Steel A105 Forged Gate Valve Threaded And Weldable ANSI Standard
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41H-JGPV
Price: 96.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Z41H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD14.9/Set - USD179.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                A105 Forged Gate Valve, Forged Gate Valve Threaded, 800lb Cast Steel Gate Valve


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Valve	Manufacturing Craft:	Forge
Structure:	Gate	Medium Type:	Water, Steam And Oil Etc.
Raw Material:	Cast Steel, Stainless Steel, Alloy Steel	Port Size:	1/2" - 2"
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Forged Gate Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Valve
Manufacturing Craft:	Forge
Structure:	Gate
Medium Type:	Water, Steam And Oil Etc.
Raw Material:	Cast Steel, Stainless Steel, Alloy Steel
Port Size:	1/2" - 2"
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Forged Gate Valve

800lb Cast Steel A105 Forged Gate Valve Threaded And Weldable ANSI Standard

ANSI Standard Threaded And Weldable 800lb Cast Steel A105 Forged Gate Valve

Product introduction:

Forged steel valves are created using a forging method that involves shaping metals and alloys while they’re in their solid form,forged steel valves are mainly suitable for pipelines in various systems of thermal power plants, and can be used to control the flow of various types of fluids such as air, water, steam, corrosive media, mud, oil products, liquid metals, and radioactive media. The characteristics of forged steel valves compared to other valve products are high temperature and high pressure resistance, unique self sealing design, and the higher the pressure, the more reliable the sealing. Due to the special performance technology characteristics and working conditions, the product has also formed characteristics that cannot be replaced by other products.

Forged steel gate valves are constructed using forged steel components, which makes them robust and well-suited for high-pressure and high-temperature applications.

Product technical parameter:

Type Number:		Z41H-JGPV
Nominal Pressure PN(MPa)		800LB
Nominal Diameter DN(mm)		1/2" - 2"
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		A105, LF2, F11, F22, F304, F304L, F321, F316L
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Threaded, welded, flanged
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

These valves come with different end connections, such as socket weld, threaded, or flanged ends, providing flexibility for installation in various piping systems and they can be operated manually using a handwheel or lever, also can be equipped with electric or pneumatic actuators for remote control and automation.

Low fluid resistance.
The external force required for opening and closing is relatively small.
The flow direction of the medium is not restricted.
Liable sealing, when fully open, the sealing surface is less susceptible to erosion by the working medium than the shut-off valve.
High-pressure capability, up to 2500lb, 42.0MPa.
Longevity and low maintenance.
