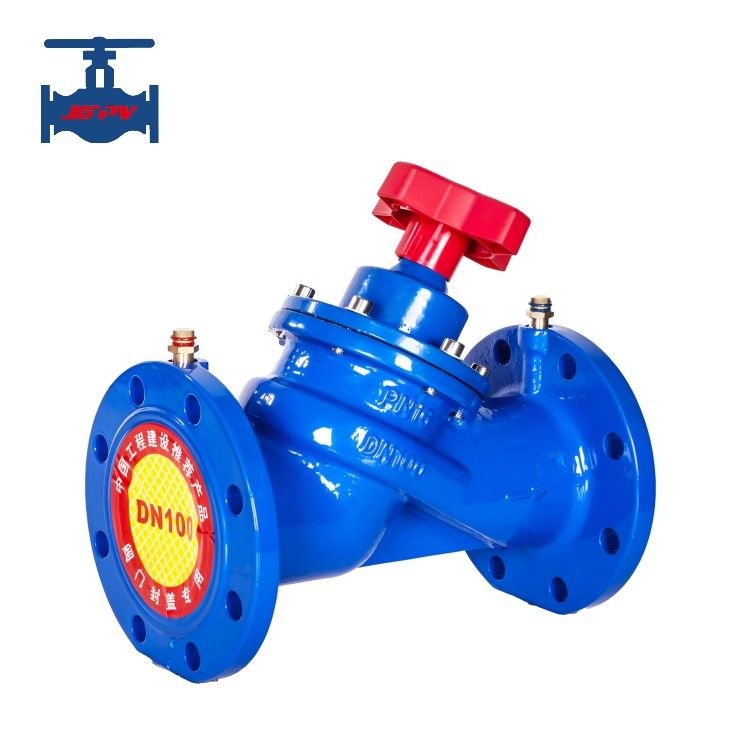

Digital Lock Automatic Flow Balancing Valve

Name: Digital Lock Automatic Flow Balancing Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: SP45F-16Q
Price: 492.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: SP45F-16Q

Payment & Shipping Terms

Minimum Order Quantity: 1 PC

Price: USD36.9/pc - USD949.9/pc

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Digital Lock Automatic Flow Balancing Valve, Flanged Automatic Flow Balancing Valve


Standard Or Non-standard:	Standard	Product Feastures:	New Type Energy-saving Valve
Purpose:	Pipeline Flow Regulation	Material:	Ductile Iron
Sealing Type:	PTFE	Port Size:	1.1/4" - 16"
Medium Type:	Water	Working Temperature:	Normal Temperature
Test Standard:	Strength Test, Sealing Test And Other Client Needs	Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Standard Or Non-standard:	Standard
Product Feastures:	New Type Energy-saving Valve
Purpose:	Pipeline Flow Regulation
Material:	Ductile Iron
Sealing Type:	PTFE
Port Size:	1.1/4" - 16"
Medium Type:	Water
Working Temperature:	Normal Temperature
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Digital Lock Automatic Flow Balancing Valve

Nodular Cast Iron Flanged Digital Lock Automatic Flow Balancing Valve

Product introduction:

A digital locking balance valve is a regulating device composed of a flow meter, controller, and valve. It can achieve precise adjustment of flow and pressure through digital control, ensuring the normal operation of heating, ventilation, air conditioning and other systems in buildings.

Digital locking balance valves are widely used in heating, ventilation, air conditioning and other systems in buildings. In the heating system, the digital locking balance valve can ensure the balance of hot water flow and temperature throughout the heating system, thereby improving heating efficiency and maintaining indoor temperature stability under changing temperatures. In ventilation and air conditioning systems, digital locking balance valves can adjust the air volume based on system load and indoor temperature, ensuring indoor air circulation and temperature comfort, so it is an efficient and intelligent pipeline regulation device that can achieve precise adjustment of flow and pressure, improve the operational efficiency and stability of the system, and is widely used in heating, ventilation, air conditioning and other systems of buildings.

Product specification parameters:

Nominal Diameter DN (mm)		32~300
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
Test Pressure (MPa)	Enclose (Water)	1.76
Main Components	Valve body	QT450-10
	Bonnet	QT450-10
	Disc	QT450-10
	Shaft	2Cr13
	Seat	PTFE
	Sealing ring	EPDM
Working temperature		-10~100℃
Medium suitable		Water
Characteristic curve		Equal percentage

Product features:

1. Ideal adjustment performance;

2. Excellent cut-off function;

3. Accurate to 1/10 turn of the open state display;

4. The theoretical flow characteristic curve is equal percentage characteristic curve;

5. National patent opening and closing locking device;

6. Corresponding to each whole circle has a fixed flow coefficient, debugging as long as the pressure difference between the two ends of the valve is measured, it can be convenient to calculate discharge flow through the valve.
