Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z41T-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD69.5/pc - USD13999/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Driven Method: |
Manual, Pneumatic And Electric Ways |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Steel |
Seal Type: |
Hard Seal |
Port Size: |
DN15-DN300 |
Flow Direction: |
Two Ways |
Connection Way: |
Flange |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Rising Stem Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Open And Shut Off Pipeline |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Driven Method: |
Manual, Pneumatic And Electric Ways |
Structure: |
Gate |
Manufacturing Craft: |
Casting |
Body Material: |
Cast Steel |
Seal Type: |
Hard Seal |
Port Size: |
DN15-DN300 |
Flow Direction: |
Two Ways |
Connection Way: |
Flange |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Rising Stem Gate Valve |

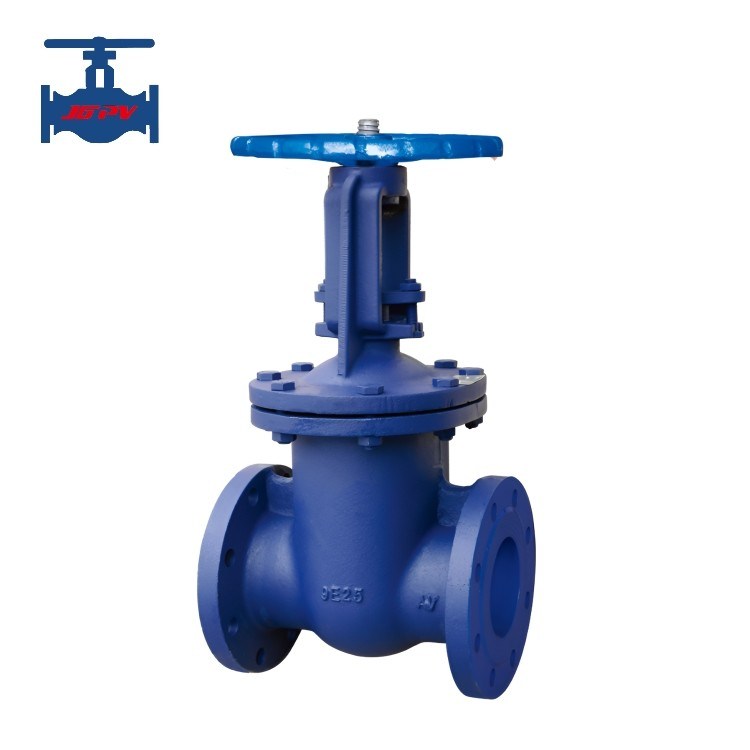

Cast Iron Ductile Iron Bolted Bonnet Outside Screw And Yoke Wedged Gate Valve
Product Introduction:
Gate Valve is a particular type of valve product that regulates fluid flow in pipeline by opening or shutting a gate or wedge that moves vertically to let or limit fluid flow. Idealistically, it shouldn’t be utilized as a regulating valve or control valve. The gate travels perpendicular to the service flow, hence the name. The most typical and straightforward form of valves are gate valves. It cannot be employed to control flow. Gate valves are frequently opened and closed by spinning a handwheel or utilizing a bevel gear actuator, pneumatic actuator or a motorized actuator to rotate a threaded stem. The fluid can pass through the valve unhindered when the gate is fully lifted. The valve is effectively shut off when the gate is lowered because it obstructs the fluid passage.
Product Technical Parameters:
| Type Number: | Z41W-JGPV | |
| Nominal Pressure PN(MPa) | 1.0 - 10.0 | |
| Nominal Diameter DN(mm) | 15～300 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | CF8, CF8M, CF3, CF3M, | |
| Medium suitable: | Water, steam, oil and nitric acid etc corrosive medium | |
| Working temperature | 200≤℃ | |
| Connection type | Flange | |
| Operational method | Hand-wheel, bevel gear, pneumatic and electric actuators | |
Application Industries:
Gate valves are extensively used in the oil and gas industry for upstream, midstream, and downstream applications. They are utilized in oil refineries, pipelines, offshore platforms, petrochemical plants, and natural gas processing facilities.
