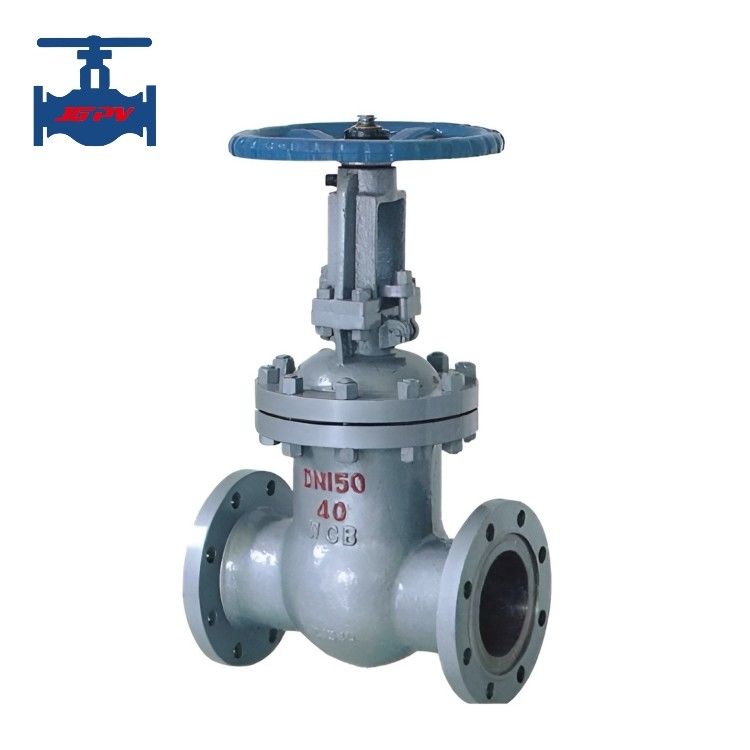

Cast Steel Rising Stem Gate Valve Rigid Wedge Gate Valve For Water / Steam / Oil

Name: Cast Steel Rising Stem Gate Valve Rigid Wedge Gate Valve For Water / Steam / Oil
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41H-JGPV
Price: 7,033.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Z41H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD69.5/pc - USD13999/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Wedge Gate Valve Rising Stem, Cast Steel Rising Stem Gate Valve, Rigid Wedge Gate Valve


Medium Type:	Water, Steam And Oil	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure	Driven Method:	Manual, Pneumatic And Electric Ways
Body Material:	Cast Steel	Seal Type:	Hard Seal
Port Size:	DN15-DN600	Flow Direction:	Two Ways
Quality Warranty:	18 Months	Customized Support:	OEM And ODM Service Available
Name:	Rising Stem Gate Valve

Medium Type:	Water, Steam And Oil
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Driven Method:	Manual, Pneumatic And Electric Ways
Body Material:	Cast Steel
Seal Type:	Hard Seal
Port Size:	DN15-DN600
Flow Direction:	Two Ways
Quality Warranty:	18 Months
Customized Support:	OEM And ODM Service Available
Name:	Rising Stem Gate Valve

Cast Steel Rising Stem Gate Valve Rigid Wedge Gate Valve For Water / Steam / Oil

Cast Steel Rising Stem Rigid Wedge Gate Valve For Water, Steam And Oil Use

Product Introduction:

Gate Valve is a particular type of valve product that regulates fluid flow in pipeline by opening or shutting a gate or wedge that moves vertically to let or limit fluid flow. Idealistically, it shouldn’t be utilized as a regulating valve or control valve. The gate travels perpendicular to the service flow, hence the name. The most typical and straightforward form of valves are gate valves.

Gate valve is always used to open and close pipelines, not used to throttle flow, and stainless steel gate valve for nitric acid type application and cast steel gate valve normally for water, steam and oil pipeline application,

Gate valves are frequently opened and closed by spinning a handwheel or utilizing a bevel gear actuator, pneumatic actuator or a motorized actuator to rotate a threaded stem.

Product Technical Parameters:

Type Number:		Z41H-JGPV
Nominal Pressure PN(MPa)		1.0 - 10.0
Nominal Diameter DN(mm)		15～300
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		WCB, WC6, WC9
Medium suitable:		Water, steam and oil
Working temperature		425≤℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product application Industries:

Gate valves has a compact structure, reasonable design, good valve rigidity, smooth channel, large flow coefficient, small flow resistance coefficient, simple structure, and easy maintenance, so it is extensively used in the water, steam and oil industry for upstream, midstream, and downstream applications. They are utilized in oil refineries, pipelines, offshore platforms, petrochemical plants, and natural gas processing facilities.
