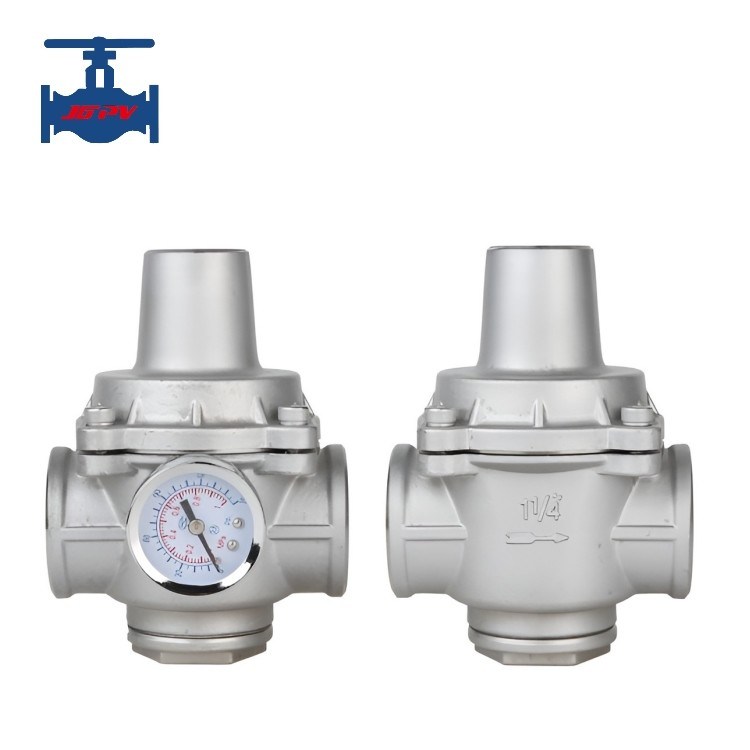

Stainless Steel Water Pressure Reducing Valve Diaphragm Type For Branch Pipeline Use

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Y11X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD18.9/Set to USD69.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Water Pressure Reducing Valve, Stainless Steel Pressure Reducing Valve Diaphragm Type, SS Pressure Reducing Valve Diaphragm Type


Standard Or Non-standard:	Standard	Application:	General
Medium Type:	Water	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Structure:	Diaphragm Type
Manufacturing Craft:	Casting	Port Size:	DN15-DN50
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Pressure Reducing Valve

Standard Or Non-standard:	Standard
Application:	General
Medium Type:	Water
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Structure:	Diaphragm Type
Manufacturing Craft:	Casting
Port Size:	DN15-DN50
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Pressure Reducing Valve

Stainless Steel Water Pressure Reducing Valve Diaphragm Type For Branch Pipeline Use

Stainless Steel Diaphragm Type Pressure Reducing Valve For Branch Pipeline Use

Product introduction:

The water pressure reducing valve is mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. it is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product parameters:

Performance specification table
Nominal pressure		1.6 MPa
Test pressure standard	Strength test (water)	2.4	MPa
	Sealing test (water)	1.76
	Sealing test (air)	0.6
	Maximum working temperature	95	℃
Medium applicable: Water
Remark: valve body test didn’t include diaphragm.

Product features:

1. Direct acting diaphragm structure is adopted, with simple internal structure, no jamming, reliable performance and durability.

2. It is dirt resistant and water-proof. It does not need bypass pipe, the piping is very simple and can save a lot of space and piping cost.

3. The outlet pressure is precisely adjustable. In general, it can be considered that the outlet pressure is not affected by the inlet pressure (the variation of the outlet pressure is 8% of △ P1)

4. Excellent hydraulic characteristics, small pressure loss, decompression ratio of more than 10:1.

5. It can meet various decompression requirements, especially suitable for branch decompression system.
