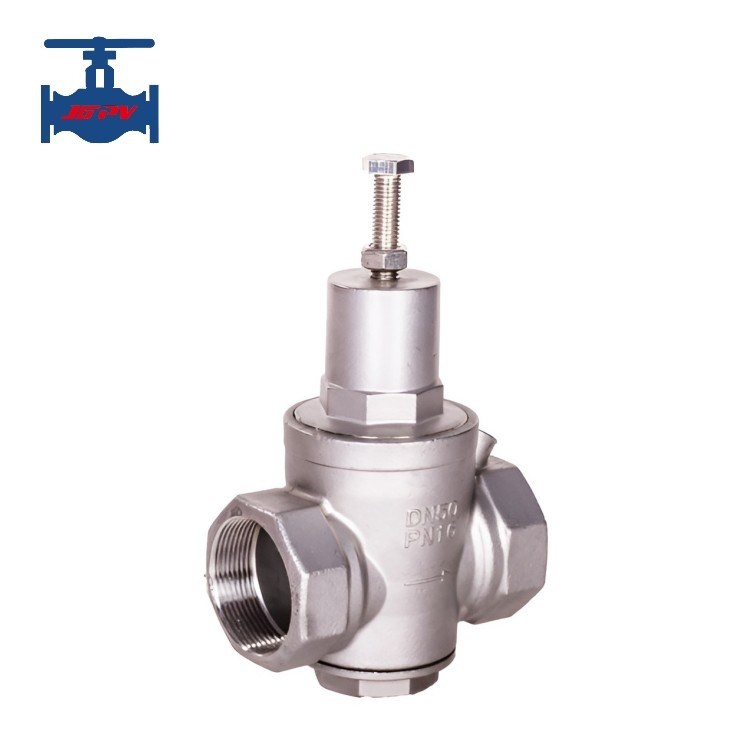

Stainless Steel Piston Type Pressure Reduce Valve For Branch Water Pipeline Use

Name: Stainless Steel Piston Type Pressure Reduce Valve For Branch Water Pipeline Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Y11X-JGPV
Price: 43.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Y11X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD18.9/Set to USD69.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Pressure Reduce Valve, Piston Type Pressure Reduce Valve


Standard Or Non-standard:	Standard	Application:	General
Medium Type:	Water	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Structure:	Diaphragm Type
Manufacturing Craft:	Casting	Port Size:	DN15-DN50
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Pressure Reducing Valve

Standard Or Non-standard:	Standard
Application:	General
Medium Type:	Water
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Structure:	Diaphragm Type
Manufacturing Craft:	Casting
Port Size:	DN15-DN50
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Pressure Reducing Valve

Stainless Steel Piston Type Pressure Reduce Valve For Branch Water Pipeline Use

Stainless Steel Piston Type Pressure Reducing Valve For Branch Water Pipeline Use

Product introduction:

Patent 2013205109302 ZLY13X-16P screw threaded stainless steel adjustable pressure reducing valve is mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. it is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product parameters:

Performance specification table
Nominal pressure		1.6 MPa
Test pressure standard	Strength test (water)	2.4	MPa
	Sealing test (water)	1.76
	Sealing test (air)	0.6
	Maximum working temperature	80	℃
Medium applicable: Water

Product features:

- Accurately control the dynamic and static pressure without fluctuation due to the change of upstream pressure.

- Patented double piston large flow (about 3 times of common similar valves) low flow noise.

- The internal structure is compact and reasonable,saving a lot of installation space consumption.

- The installation environment is simple and the pressure adjustment is wide. The best water supply pressure can be adjusted on site without professional operation.

- it is made of stainless steel with high strength and environmental protection.
