Standard Piston Type Pressure Reducing Valve Stainless Steel With Pressure Gauge

Name: Standard Piston Type Pressure Reducing Valve Stainless Steel With Pressure Gauge
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Y11X-16P
Price: 54.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Y11X-16P

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD20.9/Set to USD89.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Standard Pressure Reducing Valve, Pressure Reducing Valve Stainless Steel


Name:	Piston Type Pressure Reducing Valve	Standard Or Non-standard:	Standard
Application:	Branch Water Pipeline Application	Medium Type:	Water
Working Temperature:	Normal Temperature	Pressure Application:	Low Pressure
Raw Material:	Stainless Steel 304 And 316	Manufacturing Craft:	Casting
Port Size:	DN15-DN65	Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

Name:	Piston Type Pressure Reducing Valve
Standard Or Non-standard:	Standard
Application:	Branch Water Pipeline Application
Medium Type:	Water
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Raw Material:	Stainless Steel 304 And 316
Manufacturing Craft:	Casting
Port Size:	DN15-DN65
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months

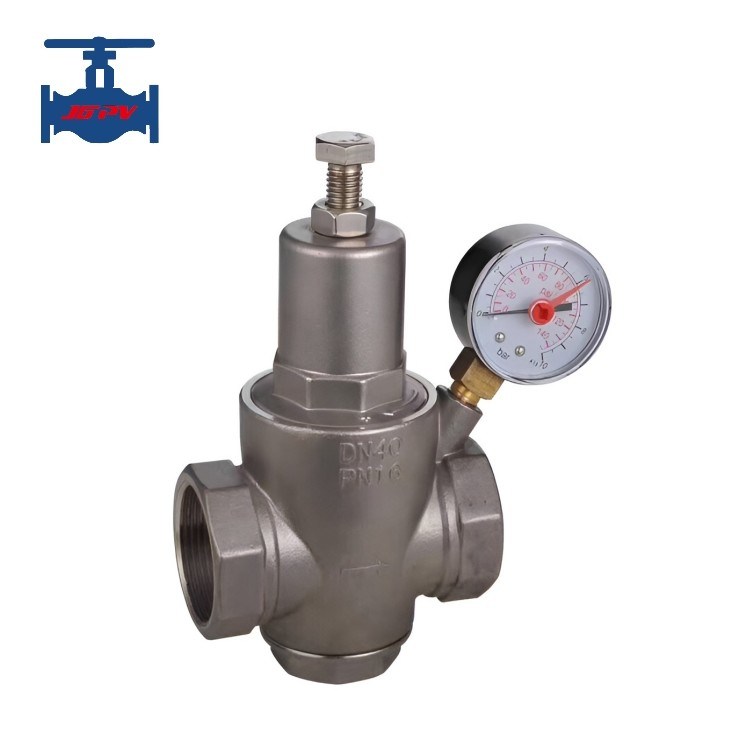

Standard Piston Type Pressure Reducing Valve Stainless Steel With Pressure Gauge

Stainless Steel Piston Type Pressure Reducing Valve With Pressure Gauge

Product introduction:

Y11X series stainless steel adjustable pressure reducing valve belongs to the pilot piston type pressure reducing valve. It consists of two parts: the master cylinder and the pilot valve. The outlet pressure is set by adjusting the spring pressure, and the change in outlet pressure is sensed by the diaphragm. The pilot valve drives the piston to adjust the size of the flow area at the throttle position of the master cylinder (i.e. the corresponding change in the control channel cross-sectional area), achieving the conversion of flow rate and pressure.

Y11X series stainless steel adjustable pressure reducing valve mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. it is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product parameters:

Performance specification table
Nominal pressure		1.6 MPa
Test pressure standard	Strength test (water)	2.4	MPa
	Sealing test (water)	1.76
	Sealing test (air)	0.6
	Maximum working temperature	80	℃
Medium applicable: Water

Product features:

- Accurately control the dynamic and static pressure without fluctuation due to the change of upstream pressure.

- Patented double piston large flow (about 3 times of common similar valves) low flow noise.

- The internal structure is compact and reasonable,saving a lot of installation space consumption.

- The installation environment is simple and the pressure adjustment is wide. The best water supply pressure can be adjusted on site without professional operation.

- it is made of stainless steel with high strength and environmental protection.
