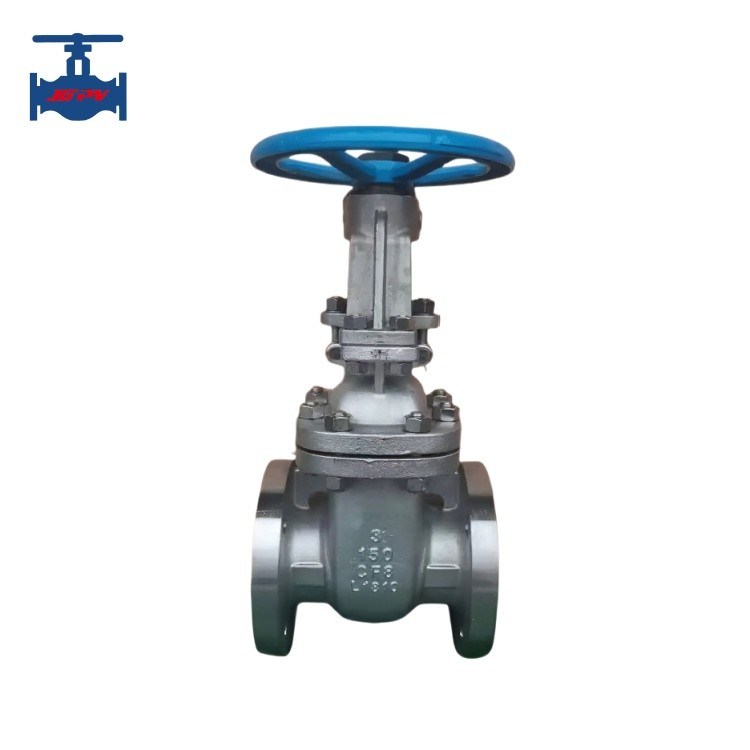

Standard Rising Stem Gate Valve Stainless Steel Wedged Gate Valve ANSI ASME API Standard

Name: Standard Rising Stem Gate Valve Stainless Steel Wedged Gate Valve ANSI ASME API Standard
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41H-150LB
Price: 7,033.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Z41H-150LB

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD69.5/pc - USD13999/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Rising Stem Gate Valve, Rising Stem Gate Valve Stainless Steel, Stainless Steel Wedged Gate Valve


Name:	Rising Stem Gate Valve	Standard Or Non-standard:	Standard
Application:	General	Product Features:	Industrial Valve Product
Purpose:	Open And Close Pipeline	Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure	Body Material:	Cast Steel
Seal Type:	Hard Seal	Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months

Name:	Rising Stem Gate Valve
Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Valve Product
Purpose:	Open And Close Pipeline
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Body Material:	Cast Steel
Seal Type:	Hard Seal
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months

Standard Rising Stem Gate Valve Stainless Steel Wedged Gate Valve ANSI ASME API Standard

ANSI ASME API Standard Stainless Steel Rising Stem Wedged Gate Valve

Product Introduction:

Gate Valve is a particular type of valve product that regulates fluid flow in pipeline by opening or shutting a gate or wedge that moves vertically to let or limit fluid flow, the gate travels perpendicular to the service flow, hence the name and it is the most typical and straightforward form of valves product.

Gate valves are frequently opened and closed by spinning a handwheel or utilizing a bevel gear actuator, pneumatic actuator or a motorized actuator to rotate a threaded stem. The fluid can pass through the valve unhindered when the gate is fully lifted. The valve is effectively shut off when the gate is lowered because it obstructs the fluid passage.

Product Technical Parameters:

Type Number:		Z41W-JGPV
Nominal Pressure (Class)		150/300/600
Nominal Diameter (Inch)		1/2" - 24"
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Application Industries:

Gate valves are extensively used in the oil and gas industry for upstream, midstream, and downstream applications. They are utilized in oil refineries, pipelines, offshore platforms, petrochemical plants, and natural gas processing facilities.

Product Functions:

Efficient draining and filling of tanks and vessels in various industries.
Handling of chemicals and petrochemicals, including hazardous compounds.
Integral part of sewage and wastewater treatment processes.
Control of water flow in irrigation systems for landscaping and agriculture.
