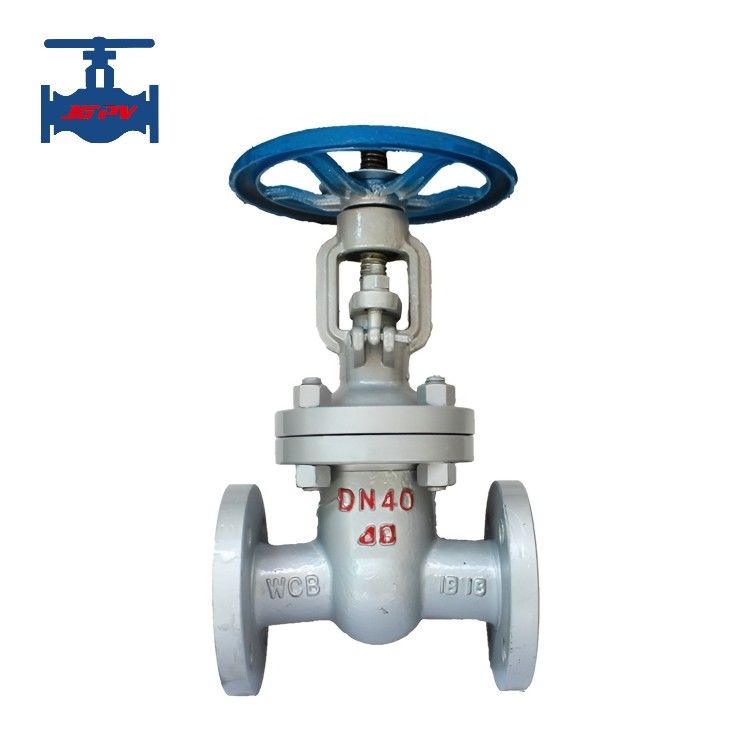

Duty Weight WCB Flanged Gate Valve For Water Steam Oil Pipeline Use

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Z41H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 10 sets

Price: USD35.9/Set to USD5899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                WCB Flanged Globe Valve, WCB Globe Valve Flanged


Standard Or Non-standard:	Standard	Application:	General
Purpose:	Pipeline Open And Close	Working Temperature:	Normal And High Temperature
Pressure Nominal:	Low, Medium And High Pressure	Driven Method:	Manual, Bevel Gear, Pneumatic And Electric Actuator
Flow Direction:	Two Ways	Test Standard:	Strength Test And Sealing Test And Client Requirement
Warranty:	18 Months	Customization:	OEM Service Support
Name:	Flanged Gate Valve

Standard Or Non-standard:	Standard
Application:	General
Purpose:	Pipeline Open And Close
Working Temperature:	Normal And High Temperature
Pressure Nominal:	Low, Medium And High Pressure
Driven Method:	Manual, Bevel Gear, Pneumatic And Electric Actuator
Flow Direction:	Two Ways
Test Standard:	Strength Test And Sealing Test And Client Requirement
Warranty:	18 Months
Customization:	OEM Service Support
Name:	Flanged Gate Valve

Duty Weight WCB Flanged Gate Valve For Water Steam Oil Pipeline Use

Duty Weight WCB Flanged Gate Valve For Water Steam And Oil Pipeline Use

Product introduction:

Cast steel gate valve: It is a general term for all gate valves made of metal steel materials cast into castings for processing. Cast steel gate valves can connect or cut off the flow of pipeline medium, change the flow direction of media, adjust the pressure and flow rate of media, and thus protect the normal operation of pipeline equipment. It is widely used for controlling pipeline flow, pressure, and temperature in various industrial automation productions. For example, in the fields of environmental protection, energy management, fire protection systems, petrochemicals, light industry, metallurgy, power generation, water supply and drainage, papermaking, shipbuilding, military industry, medicine, and food etc.

Product parameter:

Model	Z41H-16C-160C
Test pressure (Strength)	1.5 times of pressure nominal
Test pressure (Sealing)	1.1 times of pressure nominal
Working pressure	1.6MPa -16.0MPa
Working temperature	-29~425℃
Medium application	Water, steam and oil etc.
Connection way	Flange
Driven method	Manual, and bevel gear, pneumatic and electric actuator optional
Function	Pipeline open and close

Type	Part	Raw material
Type	Part	Cast steel globe valve	Stainless steel globe valve	Stainless steel globe valve	Stainless steel globe valve
1	Body	WCB	CF8	CF8M	CF3M
2	Disc	2Cr13	304	316	316L
3	Bonnet	WCB	CF8	CF8M	CF3M
4	Stem	2Cr13	304	316	316L
5	Packing	Flexible graphite	PTFE	PTFE	PTFE
6	Bolt	Brass alloy	Brass alloy	Brass alloy	Brass alloy
7	Hand-wheel	Cast iron	Cast iron	Cast iron	Cast iron

Product features:

1. Long service life. Cast steel gate valves have low fluid resistance and minimal erosion and corrosion of the sealing surface by the medium, resulting in a longer service life.

2. Widely applicable. Cast steel gate valves allow unrestricted flow of media, without disturbance or pressure reduction. Therefore, it has a wide range of applications.

3. The cast steel gate valve is easy to open and close.

4. Compared to other types, cast steel gate valves are more resistant to high temperature and high pressure, making them widely used in industries and other fields.

5. There are many materials available for cast steel gate valves, making them highly selective.

6. The manufacturing process of cast steel gate valves is strong, and due to their simple structure and short length, they have a high cost-effectiveness in production.
