Highlight:
Female Threaded Ball Valve 1000WOG
, CF8M 1000 WOG Ball Valve
, BSP Female Threaded Ball Valve
Standard Or Non-Standard: |
Standard |
Application: |
General |
Working Temperature: |
Normal Temperature And High Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Medium Application: |
Water, Steam, Oil And Corrosive Mediums |
Port Size: |
DN6-DN100 |
Connection: |
Thread, Weldable |
Quality Warranty: |
18 Months |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Customized Support: |
OEM And ODM Service Available |
Name: |
CF8M 1000 WOG Ball Valve |

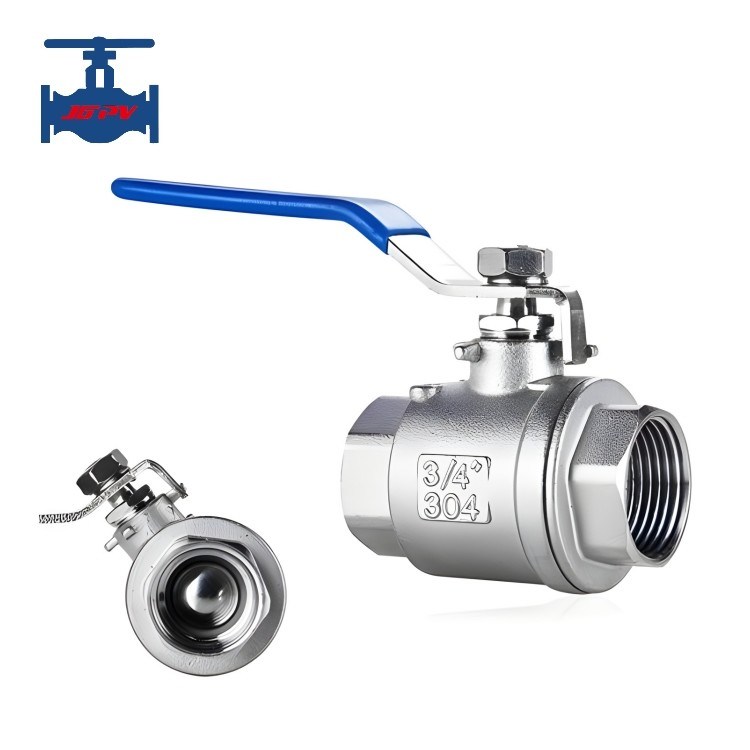

2-PC Type WCB CF8 CF8M 1000 WOG Ball Valve NPT BSP Female Threaded Ball Valve
2-PC Type WCB CF8 CF8M 1000WOG NPT BSP Female Threaded Ball Valve
Product introduction:
Ball valve is a type of general valve which inlcuding a ball with a circular channel as the opening and closing parts, the ball with the stem rotation to realize the opening and closing action of the valve. The opening and closing part of the ball valve is a perforated sphere that rotates around the axis perpendicular to the channel to achieve the purpose of opening and closing the channel. Ball valves are mainly used for opening and closing pipelines and equipment.
This Screw ball valve with 2-piece construction, can be made from cast iron, cast steel and stainless steel raw material for different medium use , nowsdays it is widely used in small size pipeline such as DN6-DN100 for water steam and oil medium application, for easy installation, perfect flow efficiency, low cost and its dualbility and maintenance.
Product technical parameters:
| Nominal Diameter DN (mm) |
DN6-DN100 |
| Nominal Pressure PN (MPa) |
1.6 - 6.4 |
| Test Pressure (MPa) |
Strength (water) |
2.4 - 9.6 |
| Enclose (Water) |
1.76 - 7.04 |
| Main Components |
Body |
WCB, CF8, CF8M, |
| Valve ball |
WCB, CF8, CF8M, |
| Seat |
PTFE/Hard alloy |
| Packing |
Soft graphite, PTFE |
| Working temperature |
≤200℃ |
| Medium suitable |
Water, oil, steam and weak corresive mediums |
| Connection |
BSP NPT, weldable |
Product features:
1. Portable unit, easy to remove and maintain, and can be installed at any position;
2. Simple and compact design, light open and close, easy operation.
3. Long service life, can be widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rockets and other departments and people’s daily life.
4. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
5. Tight and reliable, the sealing surface material of ball valve is widely used in plastic, good sealing, and has been widely used in vacuum system.
6. Open and close quickly, from fully open to fully closed as long as the rotation of 90°, convenient for remote control.
