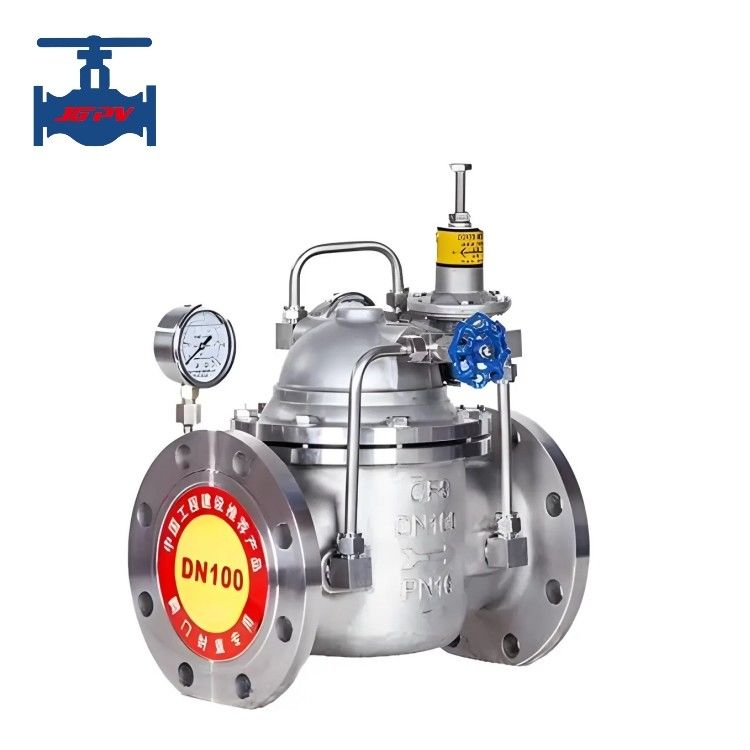

Adjustable Water Pressure Reducing Valve Pilot Operated Stainless Steel

Name: Adjustable Water Pressure Reducing Valve Pilot Operated Stainless Steel
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: 200X-16P-JGPV
Price: 2,430.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: 200X-16P-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD72.9/Set - 4789.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Adjustable Water Pressure Reducing, Pressure Reducing Valve Pilot Operated, SS Pressure Reducing Valve Pilot Operated


Standard Or Non-standrd:	Standard	Application:	General
Product Function:	Water Pipeline Pressure Control	Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Stainless Steel 304	Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Water Pipeline Pressure Control
Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Stainless Steel 304
Quality Warranty:	18 Months
Name:	Hydraulic Water Control Valve

Adjustable Water Pressure Reducing Valve Pilot Operated Stainless Steel

Stainless Steel Pilot Operated Adjustable Pressure Reducing Valve

Product technical parameter:

Pressure nominal (MPa)	1.0	1.6	2.5
Strength test pressure (MPa)	1.5	2.4	3.75
Sealing test pressure (MPa)	1.1	1.76	2.75
Max inlet pressure (MPa)	1.0	1.6	2.5
Outlet pressure adjustment range (MPa)	0.09-0.8	0.15-1.2	0.15-1.6
Working temperature	≤80℃
Medium application	Water

Product features:

1. Accurate pressure reduction: Pilot operated pressure reducing valve is suitable for pipeline systems of different pressure levels and can achieve effective pressure reduction from high pressure to low pressure.

2. High stability: The pressure reducing valve controls the system pressure by adjusting the valve opening, which has the characteristic of high stability and can maintain a relatively constant pressure output within a given range.

3. Sensitivity and fast response: The pressure reducing valve responds quickly to pressure changes and can quickly adjust the valve opening to adapt to changes in system pressure.

4. Safe and reliable: pressure reducing valve has a reliable structure, long service life, and is relatively easy to maintain and repair.
