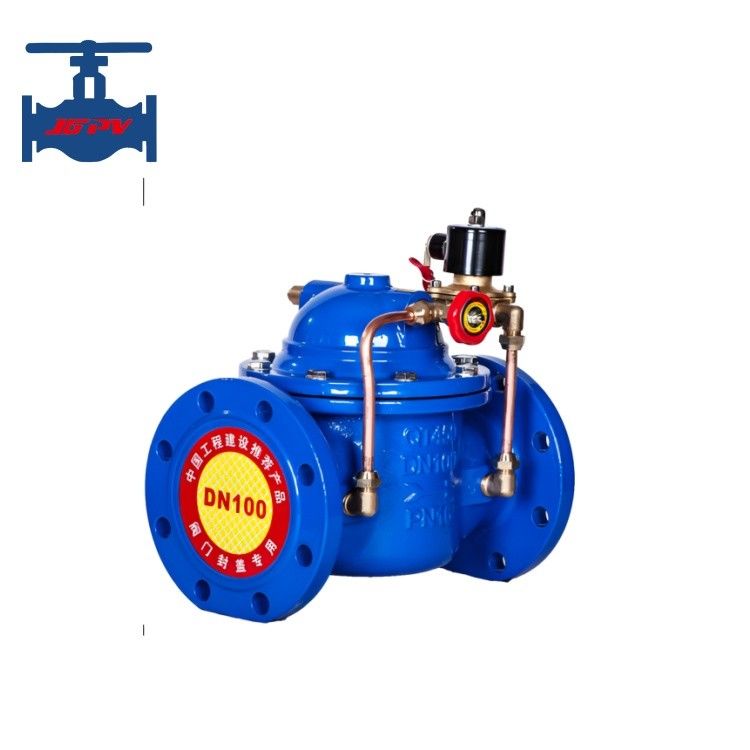

Hydraulic Cast Steel Electric Water Flow Control Valve Quick Response

Name: Hydraulic Cast Steel Electric Water Flow Control Valve Quick Response
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: 600X-JGPV
Price: 2,234.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: 600X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD79.9/Set - 4389.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Cast Steel Electric Water Flow Control Valve, Electric Control Valve Quick Response


Name:	Hydraulic Water Control Valve	Standard Or Non-standrd:	Standard
Application:	General	Product Function:	Pressure Holding And Safety Relief Control
Construction:	Diaphragm And Piston Type	Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure	Power:	Hydraulic
Manufacturing Craft:	Casting	Body Material:	Ductile Iron, Cast Steel And Stainless Steel
Quality Warranty:	18 Months

Name:	Hydraulic Water Control Valve
Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Pressure Holding And Safety Relief Control
Construction:	Diaphragm And Piston Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Ductile Iron, Cast Steel And Stainless Steel
Quality Warranty:	18 Months

Hydraulic Cast Steel Electric Water Flow Control Valve Quick Response

Cast Steel Electric Water Flow Control Valve

Product introduction:

600X electric control valve is a flow control valve controlled by an electromagnetic valve, used for fluid flow in water supply and drainage and industrial systems. Control the response accurately and quickly, and remotely open and close the pipeline system based on electrical signals to achieve remote operation. The solenoid valve can be selected with AC 220V or DC 24V, and can be selected as either normally open or normally closed according to various occasions.

Product technical parameter:

Nominal Diameter DN (mm)		50~300
Nominal Pressure PN (MPa)		1.6/2.5
Test Pressure (MPa)	Strength (water)	2.4/3.8
	Enclose (Water)	1.8/2.8
Open and close pressure difference		≤0.1MPa
Working temperature		0~80℃
Medium suitable		Water

Product features:

1. Automation control: The 600X electric control valve can be integrated with the automation control system to achieve precise control and remote operation of fluid flow.

2. Reliability and stability: The structural design of the electric actuator and the stability of the control system ensure the reliable operation and stable control performance of the valve.

3. Quick response: Electric actuators can quickly respond to control signals, achieve quick adjustment of valve opening and closing actions, and adapt to changes in system flow.
